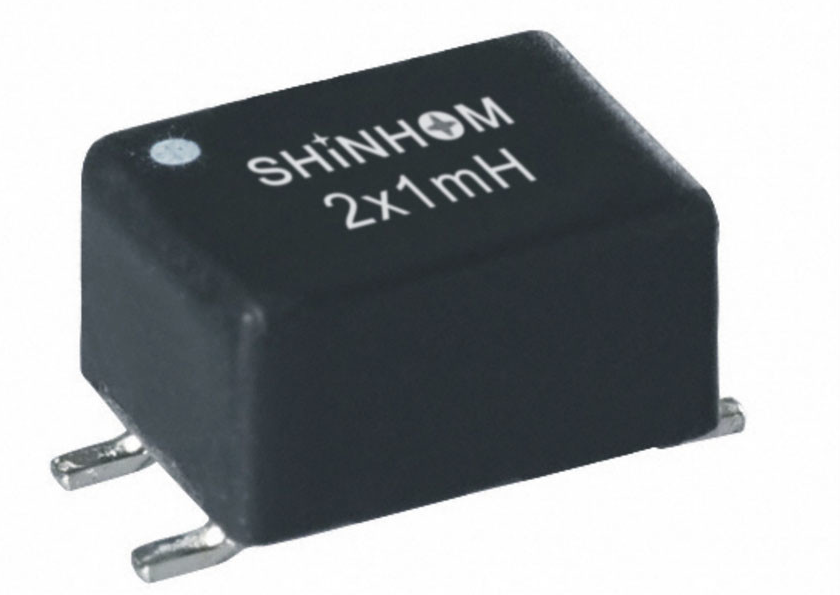

SF0904 Series Horizontal Common Mode Inductor for Data Lines

SF0904 Series SMD line filter

The SF0904 series SMD line filter is manufactured using high-quality toroidal cores and a low-resistance design, specifically designed for CAN bus and data lines, ensuring excellent electrical isolation, wide frequency range, and common-mode noise attenuation. The product features a robust and reliable structure with a low-profile cased design and lead-free construction. It meets wide operating temperature requirements. It is suitable for data lines and signal lines. It is an ideal choice for line filter applications in EMI suppression and noise filtering.

FEATURES:

1. Low profile very effective in space conscious applications
2. Low resistance filters have been designed for excellent electrical isolation
3. High quality toroidal core
4. Wide frequency range over 1000MHz
5. Lead free construction

TECHNICAL INFORMATION:

1. IDC Max:Determined when superimposed
2. Testing: (Equivalent acceptable) lnductance:HP4284A
3. Operating temperature: -40℃ to +105℃
4. Storage Temperature: -40℃ to +105℃

APPLICATIONS:

1. Provide common mode noise attenuation
2. Reduce conducted noise
3. For the suppression of
4. EMI in data lines and signal lines,e.g.,CAN Bus
