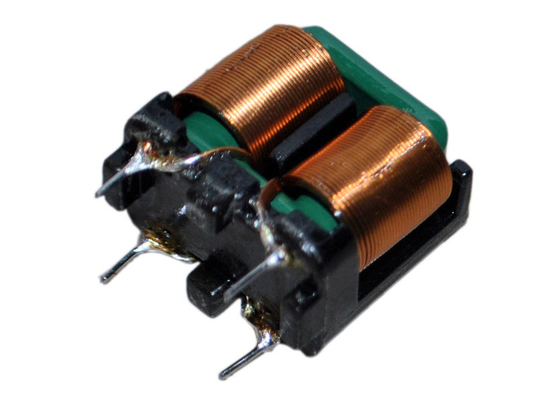

Single Phase Common Mode Coil Flat Wire Design for Switching Power Supplies

This single-phase common-mode coil is manufactured using flat wire and a ferrite hollow square core, specifically designed for switching power supplies and personal computers, ensuring high current, compact size, and high efficiency.The product features a robust and reliable structure with a single-layer winding and closed magnetic core design. It meets a wide voltage range of 85 to 265VAC.It is suitable for switching power supplies, power adapters, and LCD TVs. It is an ideal choice for common-mode coil applications in EMI suppression and power filtering.

Features

• Rated voltage – 85 to 265VAC

• Turns ratio – 1:1

• Insulation resistance – 100mΩ min.

• Temperature rise – 50°C max.

• Flat wire high-frequency skin effect

• Unit current density – 1.5 to 2 times

• Single-layer winding – low temperature rise

• Excellent EMI suppression

Applications

• Personal computers

• Switching power supplies

• Power adapters

• UPS

• Computer products

• DVDs

• LED power supplies

• LCD TV and monitor power boards

Notes: Customized is available
