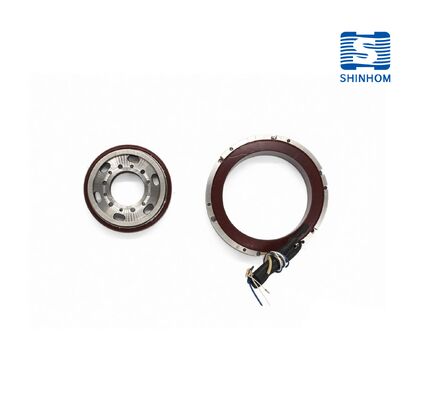

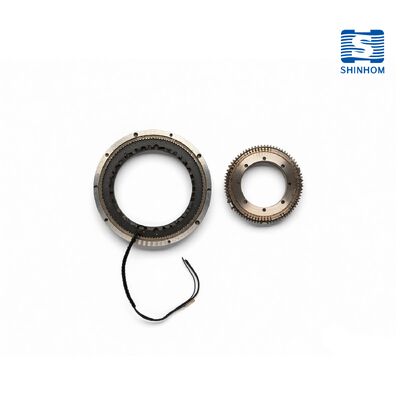

High Torque Density Brushless DC Torque Motor with Up to 95% Efficiency and IP54 Protection for Industrial Applications

MOQ
MOQ
High Torque Density Brushless DC Torque Motor with Up to 95% Efficiency and IP54 Protection for Industrial Applications
Features Gallery Product Description Chat Now
Features
Specifications
Voltage:: 24V / 48V
Torque:: 0.3 Nm To 2.5 Nm (depending On Model)
Speed Range:: 1000 To 5000 RPM
Efficiency:: Up To 95%
Motor Type:: Brushless DC
Protection Class:: IP54
Operating Temperature:: -10°C To +60°C
Weight:: 1.5 Kg To 3 Kg (depending On Model)
Customization:: Available For Custom Torque And Speed Configurations
Applications:: Robotics, Automation, Precision Equipment, Consumer Electronics
Highlight:

95% Brushless DC Torque Motor

,

IP54 Brushless DC Torque Motor

,

Industrial Applications Brushless DC Torque Motor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: Brushless DC Torque Motor
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
High-Precision Brushless DC Torque Motor for Industrial Applications

Engineered for demanding industrial environments, this High-Precision Brushless DC Torque Motor delivers exceptional torque performance with minimal vibration and maximum efficiency. Utilizing advanced permanent magnet technology, it provides high torque at low speeds, making it ideal for robotics, automation, and precision control systems.

Key Features & Benefits
  • High Torque Density: Compact design delivers maximum torque output in minimal space
  • Brushless Design: Maintenance-free operation with extended service life
  • High Efficiency: Up to 95% energy efficiency with reduced heat generation
  • Low Vibration: Smooth operation for precision machinery applications
  • IP54 Protection: Reliable performance in industrial environments with dust and water splash resistance
  • Wide Speed Range: Versatile operation across multiple speed requirements
Technical Data
Model Voltage (V) Continuous Stall Current (A) Continuous Stall Torque (N·m) Peak Stall Current (A) Peak Stall Torque (N·m) No-load Speed (r/min) Torque Coefficient (N·m/A) Weight (g) Temperature (℃)
J26LWX01 24 ≤1.3 ≥0.02 ≤2.8 ≥0.04 1000 ≥0.015 20 -55~+85
J30LW10 26 ≤0.65 ≥0.05 ≤1.3 ≥0.1 2800 ≥0.08 28 -55~+85
J36LW10 26 ≤0.75 ≥0.11 ≤1.6 ≥0.22 1600 ≥0.15 52 -55~+85
J40LW10 26 ≤0.7 ≥0.09 ≤1.5 ≥0.18 1700 ≥0.14 50 -55~+85
J45LWX01 15 ≤1.2 ≥0.12 ≤2.5 ≥0.23 1200 ≥0.1 75 -55~+85
J50LWX01 28 ≤4.0 ≥0.55 ≤8.6 ≥1.1 1200 ≥0.14 270 -55~+85
J55LWX01 15 ≤1.0 ≥0.15 ≤2.2 ≥0.3 800 ≥0.15 120 -55~+85
J60LWX01 27 ≤3.1 ≥0.75 ≤6.5 ≥1.5 1000 ≥0.25 240 -55~+85
J70LWX01 24 ≤1.0 ≥0.23 ≤2.0 ≥0.44 1100 ≥0.23 170 -55~+85
J74LST01 28 ≤1.1 ≥0.35 ≤2.2 ≥0.6 710 ≥0.31 250 -55~+85
J78LWX01 28 ≤1.1 ≥0.34 ≤2.2 ≥0.6 920 ≥0.3 230 -55~+85
J91LWX01 28 ≤2.4 ≥0.74 ≤4.8 ≥1.2 900 ≥0.31 210 -55~+85
J110LWX1 28 ≤7 ≥3.5 ≤14.8 ≥7 430 ≥0.5 1300 -55~+85
J122LW30 27 ≤1.8 ≥2.9 ≤3.2 ≥4 170 ≥1.6 780 -55~+85
J127LW28 48 ≤3.7 ≥4.2 ≤16.7 ≥18 365 ≥1.13 930 -55~+85
J162LW23 27 ≤1.6 ≥1.5 ≤3.4 ≥3 230 ≥1.25 520 -55~+85
J165LST03 60 ≤6 ≥12.7 ≤12 ≥25 278 ≥2.05 3430 -55~+85
J172LW01 27 ≤10.1 ≥23 ≤21 ≥48 100 ≥2.27 3950 -55~+85
J177LW01 24 ≤9.4 ≥15 ≤23.2 ≥35 150 ≥1.6 2600 -55~+85
J180LW31 48 ≤5.5 ≥9.3 ≤19 ≥32 243 ≥1.7 1730 -55~+85
J250LW01 28 ≤9.5 ≥40 ≤12.3 ≥52 60 ≥4.2 5400 -55~+85
J275LW01 48 ≤14.4 ≥115 ≤31.4 ≥245 60 ≥8 21400 -55~+85
J355LW01 48 ≤12.2 ≥256 ≤24 ≥480 23 ≥21 47000 -55~+85
Industrial Applications
  • Robotics: Precision robotic arms and motion control systems
  • Automation: CNC machines and automated assembly lines
  • Precision Equipment: Testing equipment requiring stable, controlled torque
  • Consumer Electronics: Compact, high-torque applications in home appliances
