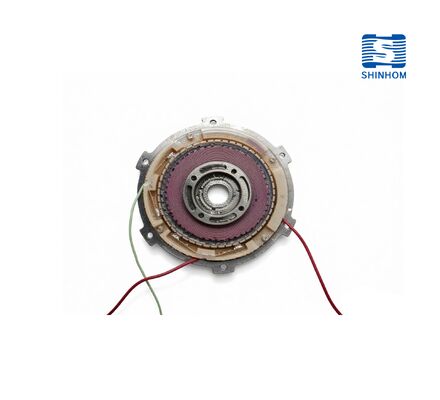

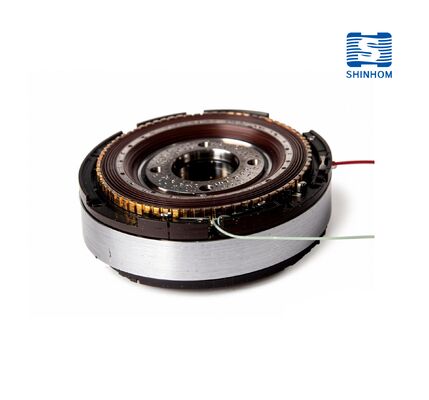

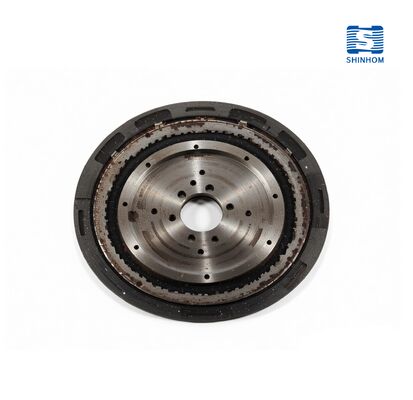

High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation

MOQ
MOQ
High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Voltage:: 12V / 24V
Torque:: 0.1 Nm To 1.5 Nm (depending On Model)
Speed Range:: 500 To 3000 RPM
Efficiency:: Up To 85%
Motor Type:: Brushed DC
Operating Temperature:: -10°C To +60°C
Weight:: 0.8 Kg To 2.5 Kg (depending On Model)
Customization:: Available For Custom Torque And Speed Configurations
Noise Level:: ≤55dB (depending On Speed)
Cooling Type:: Natural Air Cooling
Applications:: Robotics, Conveyor Systems, Test Equipment, Small Appliances
Highlight:

Brushed DC Torque Motor Compact Size

,

High Torque Brushed DC Torque Motor

,

Compact Brushed DC Torque Motor
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS/ISO/UL/CE/IATF16949/CNAS
Model Number: Brushed DC Torque Motor
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description
High-Performance Brushed DC Torque Motor

Engineered for demanding industrial automation tasks, this brushed DC torque motor delivers reliable torque output with exceptional precision and efficiency. Designed to excel in environments where high torque at low speeds and consistent performance are crucial, its rugged construction and high energy efficiency make it ideal for robotics, conveyor systems, and other automation applications requiring continuous operation under load.

Key Features & Benefits
  • High Torque Output: Robust torque generation ensures smooth, powerful performance at low speeds
  • Brush Technology: Traditional brushed DC motor design for cost-effective, simple implementation with reliable performance
  • High Efficiency: Minimizes energy loss and heat generation for optimal energy use during operation
  • Durable Construction: Built to withstand demanding industrial environments with robust, reliable design
  • Compact Size: Delivers high torque in a compact form factor, ideal for space-constrained applications
Technical Data
Model Peak Stall Continuous Stall Maximum No-load Speed (r/min) Torque Ripple Coefficient (%)
Voltage (V) Current (A) Torque (N·m) Voltage (V) Current (A) Torque (N·m)
J49LYX01 44.3 ≤7.73 ≥0.443 14.6 ≤2.576 ≥0.148 2990 ≤5
J50LYX01 27 ≤2 ≥0.25 9 ≤0.67 ≥0.08 1200 ≤6
J72LYX01 22.4 ≤6 ≥0.32 11 ≤2.8 ≥0.14 2273 ≤5
J75LYX01 27 ≤3 ≥1.2 11 ≤1.3 ≥0.5 ≤600 ≤6
J76LYX01 22.4 ≤5.5 ≥0.43 11 ≤2.5 ≥0.2 1222 ≤5
J88LYX-CJ01 27 ≤2.7 ≥19 9 ≤1 ≥4 25 ≤6
180LYX01 28 ≤5.04 ≥14.7 13 ≤2.5 ≥7 65 ≤6
180LYX02 27 ≤4 ≥9.8 12 ≤1.8 ≥4 65 ≤6
200LYX01 27 ≤5 ≥4.9 12 ≤2.2 ≥2 — ≤5
Industrial Applications
  • Industrial Automation: Automated assembly lines and robotic systems
  • Conveyor Systems: Manufacturing facility conveyors requiring smooth, reliable torque
  • Test Equipment: Laboratory testing environments with precision torque requirements
  • Small Appliances: Consumer electronics motors where high torque is needed in compact designs
