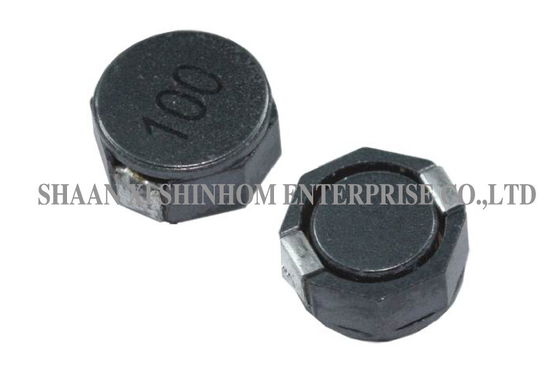

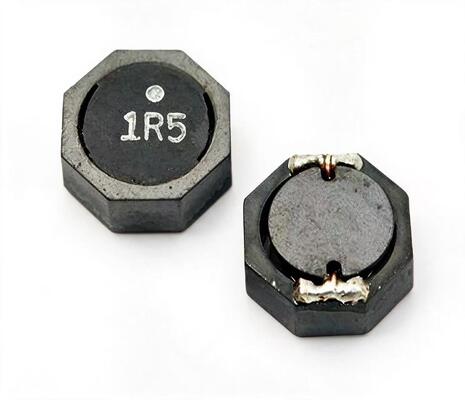

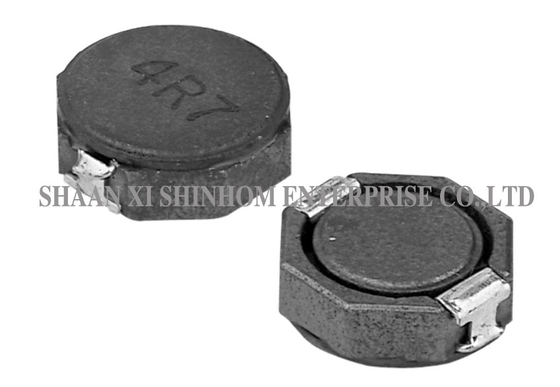

Wide Temp SMD Shielded Power Inductor SDRH8D28/8D43 Series for VTRs and OA Equipment

5000PCS
MOQ
Negotiation
Price
Wide Temp SMD Shielded Power Inductor SDRH8D28/8D43 Series for VTRs and OA Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Inductance: 100 UH
DCR: 0.36 Ohm
Rated Current: 0.9A
Nature Of Operation: SMD Power Inductor
Operating Temperature: -40℃ To +105℃
Storage Temperature: -40℃ To +105℃
Highlight:

SMD shielded power inductor

,

wide temp power inductor

,

SDRH8D28 power inductor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH8D28/8D43 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

SDRH8D28/8D43 Series 8.3*8.3mm shielded inductors,100uH Power inducotr,SMD high reliability coils chokes

The SDRH8D28/8D43 series magnetic shielded SMD power inductor features a compact 8.3*8.3mm package and magnetic shield structure. It effectively reduces EMI and is suitable for high-density PCB layouts and space-constrained applications.Inductance values cover multiple specifications (including 100μH). High current capacity is up to 6.4A. Low DCR ensures high conversion efficiency.The product offers high saturation current characteristics, meeting high-power power management requirements.It is widely used in video recorders, OA equipment, digital cameras, LCD TVs, laptops, portable communication devices, and DC-DC converters.

Features

  • Magnetic shield structure – low EMI

  • Package size – 8.3*8.3mm

  • Rated current – up to 6.4A

  • Low DCR

  • High reliability

  • High saturation current

  • Operating temperature – -40°C to +105°C

  • Storage temperature – -40°C to +105°C

Applications

  • Video recorder (VTR) power supplies

  • OA office automation equipment

  • Digital camera power supplies

  • LCD TV power supplies

  • Laptop motherboard power supply

  • Portable communication devices

  • DC-DC converters

  • Power management modules

TEST EQUIPMEN AND CONDITIONS:

·Inductor Testing: HP4284A (Equivalent acceptable)
DCR:QuadTech 1880 Milliohmmeter
IDCMax current is decreased 10% against its initial value
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃ to +105℃

Wide Temp SMD Shielded Power Inductor SDRH8D28/8D43 Series for VTRs and OA Equipment

Note: Product specifications can be customized.Custom inductance values are available.

FAQ

Q: What is the maximum rated current of this series?

A: This series offers high current capacity up to 6.4A, suitable for high-power DC-DC converters and power management applications. When selecting, we recommend choosing a rated current at least 20% higher than the maximum operating current to prevent performance degradation caused by core saturation at high temperatures.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model (including inductance value requirements). Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks
