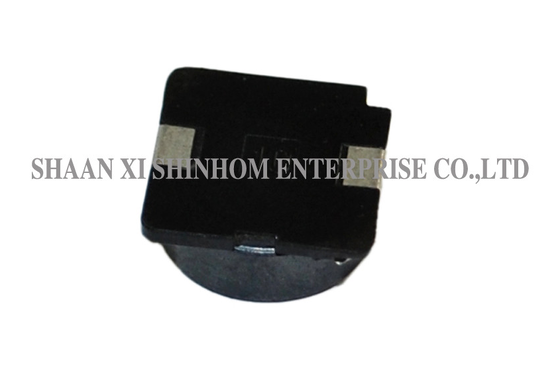

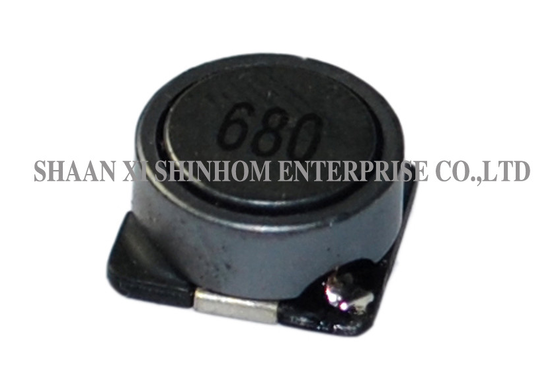

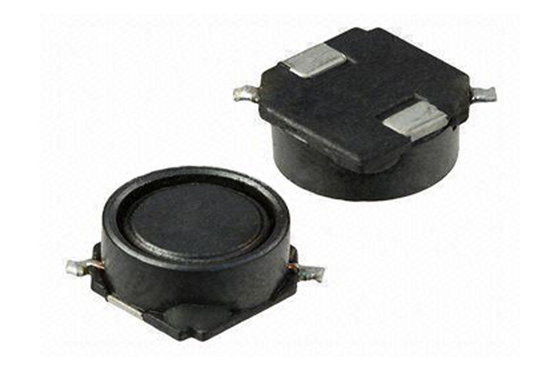

Shielded Inductor SDRH10145/12555 Series Reflow Compatible for Communication and Industrial Equipment

The SDRH10145/12555 series magnetic shielded SMD power inductor uses a ferrite core and features a compact thin design. It offers high current capacity and low DCR, ensuring high conversion efficiency.The magnetic shield structure effectively reduces EMI, making it suitable for high-density PCB layouts and space-constrained applications.The well-designed solder fillets and clear marking prevent damage during reflow soldering. It is compatible with both reflow soldering and manual soldering processes.It is 100% lead-free and RoHS compliant.It is widely used in DC-DC converters, power management modules, communication equipment, industrial control, and various portable electronic devices.

1. Compact and thin
2. Large current and low DC resistance
3. Lead-free
4. RoHS compliant
5. Magnetically shielded chip inductor
6. Shielded SMD power chip inductor
7. For high current and very low DCR
8. Re-flow and hand soldering are available
9. Good solder fillets and character prevents damage during soldering re-flow
10. Suitable for reflow soldering
11. More competitive prices and fast delivery service

1. Notebook computer
2. Battery power equipment
3. DC/DC converter
4. Digital camera and scanner
5. CD-ROM/DVD and PDA
6. Small size communication equipment
7. Filtering of supply voltages
8. Coupling, decoupling
9. Automotive electronics

1. Tested at 1.0kHz, 0.1Vrms
2. DC current at which the inductance drops 10% (type) from its value without current
3. Operating temperatures: Range -40 to 105℃
4. Storage Temperature: -40℃ to +105℃
5. Electrical characteristics at 25℃

Note: Product specifications can be customized.

Q: What are the benefits of the compact thin design?

A: The compact thin design saves PCB space and reduces component height, making it suitable for space-constrained portable devices and low-profile electronic products, improving system integration.

Q: What is the significance of good solder fillet design?

A: Good solder fillet and clear marking design ensure uniform solder wetting during reflow soldering, forming reliable solder joints, preventing soldering defects and component damage, and improving production yield.

Q: What soldering processes does this product support?

A: It supports both reflow soldering and manual soldering. Reflow soldering is suitable for automated SMT production lines, while manual soldering is suitable for prototyping and small-batch production.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
