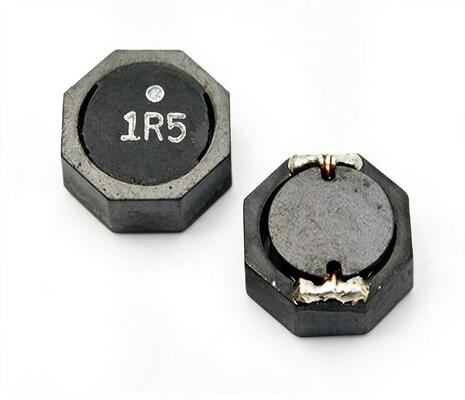

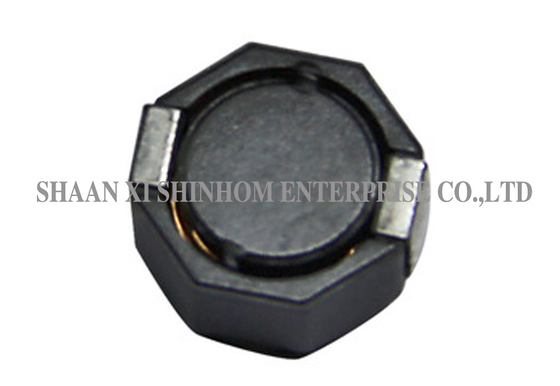

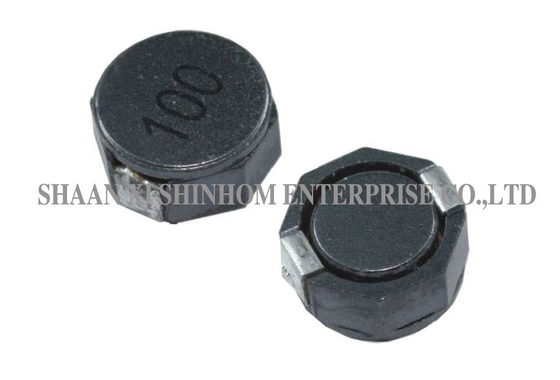

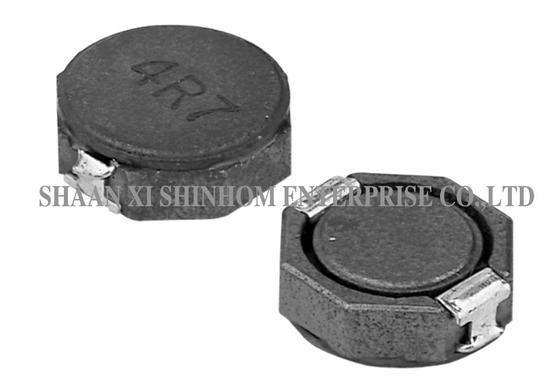

High Current SMD Shielded Inductor SDRH5020/5028 Series Low DCR High Efficiency for Power Management

5000PCS
MOQ
Negotiation
Price
High Current SMD Shielded Inductor SDRH5020/5028 Series Low DCR High Efficiency for Power Management
Features Gallery Product Description Chat Now
Features
Specifications
Structure: Core
Structure Of Winding: Single Coil
Inductance: 1.0uH To 470uH
Tolerance: ±20%(Can Be Customized ±10%)
Operating Temperature: -25℃ To +85℃
Storage Tempera Ture: -55℃ To +125℃
Highlight:

SMD shielded inductor high current

,

power management inductor low DCR

,

surface mount inductor high efficiency
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH5020/5028 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The SDRH5020/5028 series magnetic shielded SMD power inductor features a compact design. Inductance range covers 1μH to 470μH. It offers high current capacity and low DCR, ensuring high conversion efficiency. The magnetic shield structure effectively reduces leakage flux and electromagnetic interference. The extremely low audible noise and low leakage flux make it suitable for noise-sensitive applications. The product undergoes strict current testing. It is 100% lead-free and RoHS compliant. It is widely used in DC-DC converters, power management, communication equipment, and industrial control applications.

Features
  • Inductance range – 1-470μH
  • Test frequency – 100KHz / 1.0V
  • High current capacity
  • Low DCR
  • High efficiency
  • Low audible noise
  • Extremely low leakage flux noise
  • High reliability
Applications
  • DC-DC converters
  • Power management modules
  • Communication equipment
  • Industrial control equipment
  • Laptop power supplies
  • Portable electronic devices
  • Automotive electronics
  • Consumer electronics power supplies
High Current SMD Shielded Inductor SDRH5020/5028 Series Low DCR High Efficiency for Power Management

Note: Product specifications can be customized.

FAQ

Q: What are the storage conditions for this product?

A: To maintain solderability of the terminal electrodes, we recommend storing at temperatures below 40°C and humidity below 60%RH, and using the product within 12 months of delivery. Packaging materials should be stored in an environment free of chlorine or sulfur gases.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
