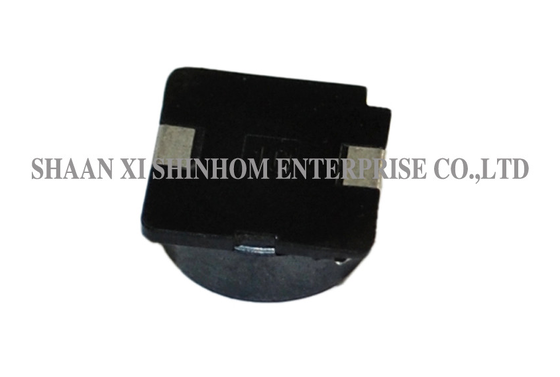

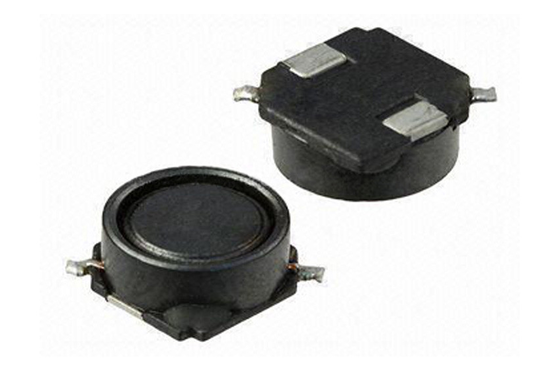

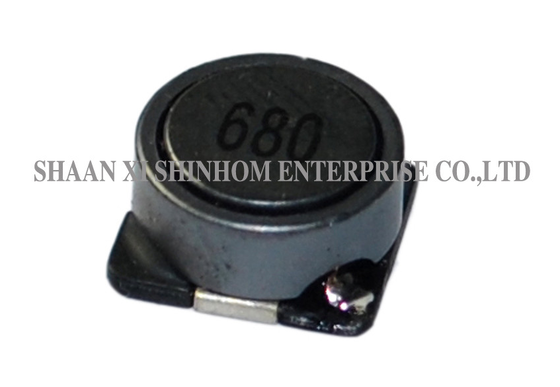

High Current SMD Shielded Choke Coil SDRH12565/12575 Series Low DCR for LCD TVs and Cell Phones

The SDRH12565/12575 series magnetic shielded SMD power inductor features a magnetic shield structure that effectively reduces EMI, making it suitable for high-density PCB layouts and space-constrained applications. High current capacity is up to 6.2A. Low DCR ensures high conversion efficiency. It is widely used in video recorders, LCD TVs, mobile phones, laptops, PDAs, electronic clocks and watches, DC-DC switching power supplies, OA equipment, and flash programmers in consumer electronics and office automation applications.

Features

• Magnetic shield structure – low EMI
• Rated current – up to 6.2A
• Low DCR
• High reliability
• Operating temperature – -40°C to +105°C
• Storage temperature – -40°C to +105°C
• Soldering method – vapour phase / infrared reflow
• Soldering heat resistance – 260°C / 10 seconds

Applications

• Video recorder (VCR) power supplies
• LCD TV power supplies
• Mobile phone power management
• Laptop motherboard power supply
• PDA power supplies
• Electronic clock and watch power supplies
• DC-DC switching power supplies
• OA equipment and flash programmers

TEST EQUIPMEN AND CONDITIONS:

·Inductor Testing: HP4284A (Equivalent acceptable)
DCR:QuadTech 1880 Milliohmmeter
IDCMax current is decreased 10% against its initial value
·Operating temperature: -40℃ to +105℃
·Storage Temperature: -40℃ to +105℃
·Solder methods: Vapor Phase,Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
·Solvent resistance: Conforms to MIL-STD-202E

Note: Product specifications can be customized.
