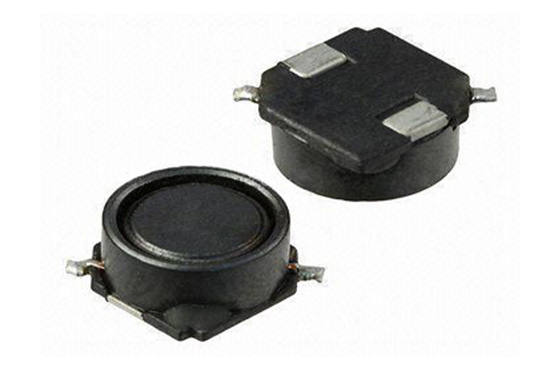

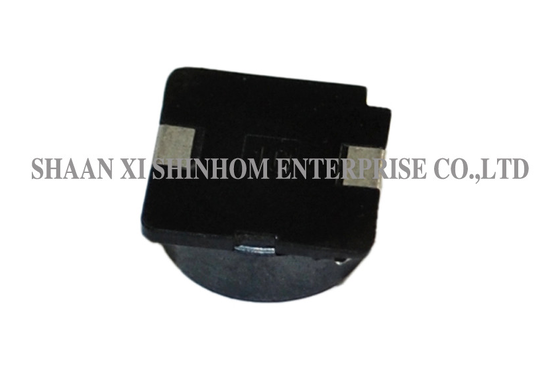

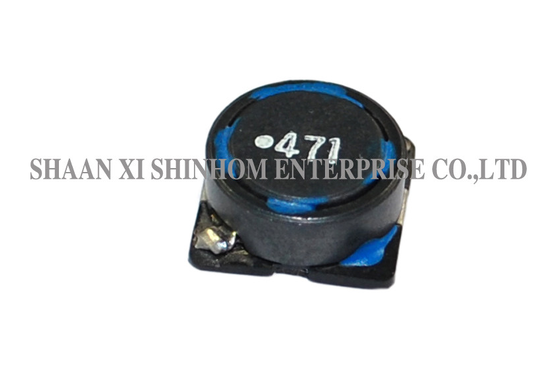

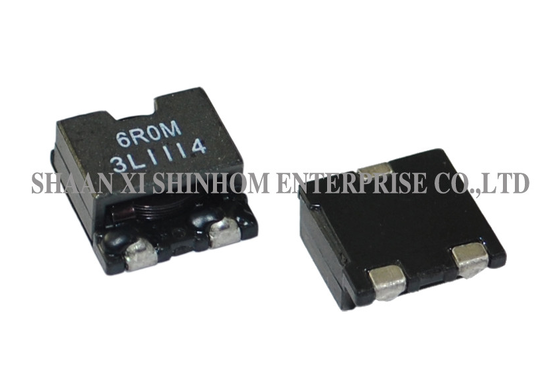

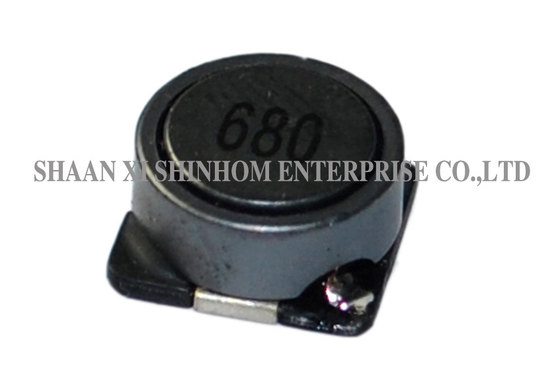

Magnetically Shielded SMD Power Inductor SDRH7032/7045 Series for DC-DC Converters

The SDRH7032/7045 series magnetic shielded SMD power inductor features a magnetic shield structure and plastic base design. Inductance range covers 3.3μH to 470μH. It offers high current capacity and low DCR. The plastic base provides stable PCB mounting support and good insulation. Tape and reel packaging is suitable for automated SMT placement and compatible with reflow soldering. It is 100% lead-free and RoHS compliant. It is widely used in DC-DC converters, power management modules, communication equipment, automotive electronics, and various portable electronic devices.

• Magnetically Shielded Structure
• With Plastic Base
• Large current up to 1.9A
• Carrier tape packing use for SMT.
• High rated,low DCR,Rotundity.
• Suitable for reflow SMT Craft soldering.
• Lead free products,RoHS compliant.

• Notebook computer
• Battery power equipment
• DC/DC converter
• Digital camera and scanner
• CD-ROM/DVD and PDA
• Small size communication equipment
• Filtering of supply voltages
• Coupling, decoupling
• Automotive electronics

• Inductor Testing: HP4284A (Equivalent acceptable)
• DCR:QuadTech 1880 Milliohmmeter
• IDCMax current is decreased 10% against its initial value
• Operating temperature: -40℃ to +105℃
• Storage Temperature: -40℃ to +105℃

Note: Product specifications can be customized.
