Low-Profile SMD Shielded Inductor SDRH6025/6028 Series High Current Low DCR for Power Management

5000PCS
MOQ
Negotiation
Price
Low-Profile SMD Shielded Inductor SDRH6025/6028 Series High Current Low DCR for Power Management
Features Gallery Product Description Chat Now
Features
Specifications
Inductance: 1.0 To 100uH
Current Up To: 2.7A
Base: SMD Plastic Base
Pad Size: 6.3*6.3mm
Operating Temperatures: -40 To 105°C
Storage Temperature: -40 To 105°C
Highlight:

Low-Profile SMD shielded inductor

,

High current power management inductor

,

Low DCR SDRH6025 series inductor
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SDRH6025/6028 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

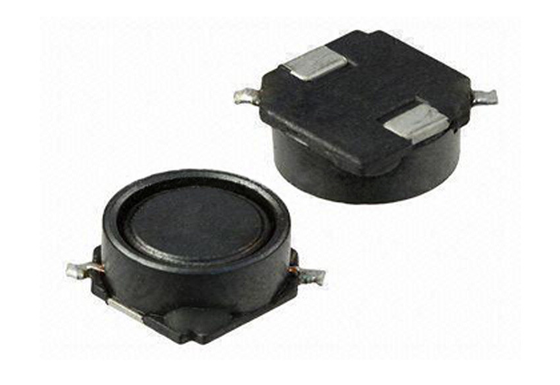

The SDRH6025/6028 series low-profile SMD shielded inductor features a magnetic shield structure and compact thin design. Inductance range covers 1μH to 100μH. It offers high current capacity (up to 2.7A) and low DCR. The plastic base design ensures secure mounting. The good solder fillets and clear marking prevent damage during reflow soldering. It is compatible with both reflow soldering and manual soldering processes. It is 100% lead-free and RoHS compliant. It is widely used in DC-DC converters, power management, automotive electronics, communication equipment, and various portable electronic devices.

FEATURES:

  • With plastic base
  • Magnetically Shielded Structure
  • Low DC Resistance
  • Large current up to 2.7A
  • Compact and thin
  • Large current and low DC resistance
  • Lead-free
  • RoHS compliant
  • Magnetically shielded chip inductor
  • Shielded SMD power chip inductor
  • For high current and very low DCR
  • Re-flow and hand soldering are available
  • Good solder fillets and character prevents damage during soldering re-flow
  • Suitable for reflow soldering
  • More competitive prices and fast delivery service

APPLCATIONS:

  • Notebook computer
  • Battery power equipment
  • DC/DC converter
  • Digital camera and scanner
  • CD-ROM/DVD and PDA
  • Small size communication equipment
  • Filtering of supply voltages
  • Coupling, decoupling
  • Automotive electronics

TEST EQUIPMEN AND CONDITIONS:

Tested at 100kHz, 0.1Vrms/1KHz,0.1Vrms

Inductance: K=±10%,M±20%,N=±30%
DC current at which the inductance drops 10% (type) from its value without current
Operating temperatures: range -40 to 105°C
Electrical characteristics at 25°C:

Low-Profile SMD Shielded Inductor SDRH6025/6028 Series High Current Low DCR for Power Management

Note: Product specifications can be customized.
