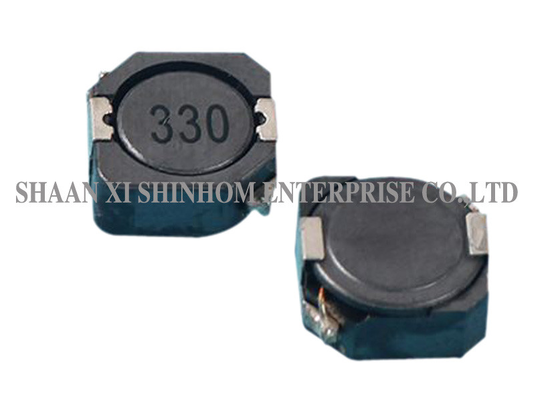

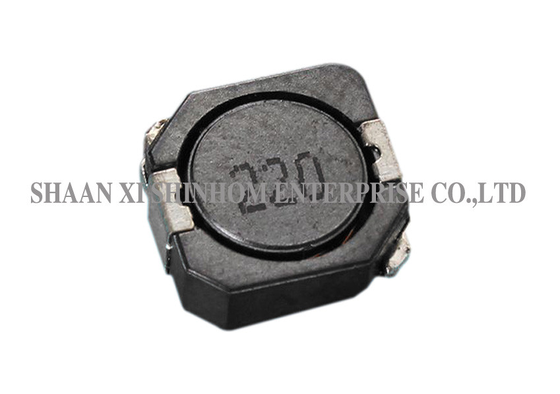

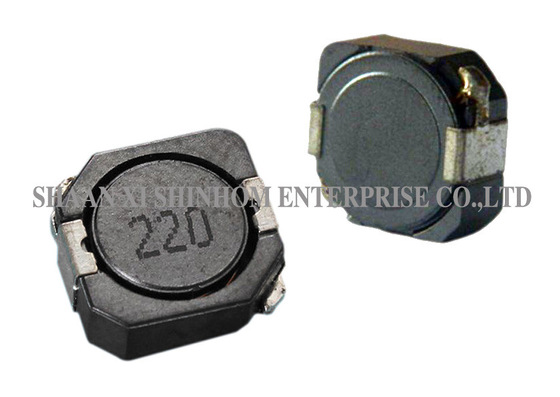

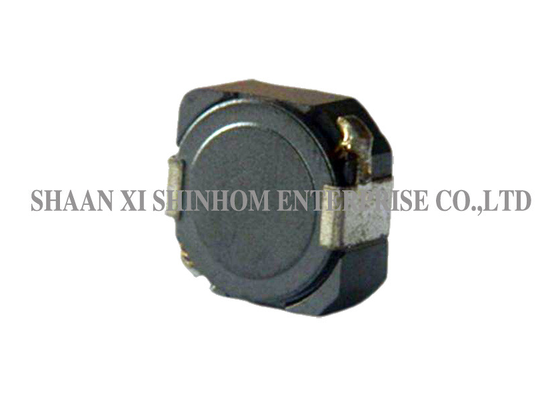

High Current SMD Shielded Inductor SDRH103/104/105 Series High Saturation for Notebooks and LCD TVs

The SDRH103/104/105 series magnetic shielded SMD power inductor features a shielded structure that effectively reduces EMI, making it suitable for high-density PCB layouts and space-constrained applications.The product offers high saturation current characteristics, with an inductance range of 10μH to 560μH. The miniature size, high energy storage, and low resistance characteristics make it an ideal inductor choice for PDA and DC-DC switching power supplies, suitable for high-current operation.Excellent mechanical strength and thermal stability allow it to withstand reflow soldering temperature changes and external mechanical stress.It is widely used in video recorders, OA equipment, digital cameras, LCD TVs, laptops, portable communication devices, and DC-DC converters.

Features

• Magnetic shield structure – low EMI

• Inductance range – 10-560μH

• High saturation current

• Miniature size – high energy storage

• Low DCR

• Excellent mechanical strength and thermal stability

• Operating temperature – -40°C to +105°C

• Storage temperature – -40°C to +105°C

Applications

• Video recorder (VCR) power supplies

• OA office automation equipment

• Digital camera power supplies

• LCD TV power supplies

• Laptop motherboard power supply

• Portable communication devices

• DC-DC converters

• PDA power supplies

Characteristics

1. Inductance range: 10 to 560uH
2. Operating temperature: -20 to 100 degrees Celsius
3. Customized to customer specifications
4. Operating temperature: -40℃ to +105℃
5. Storage Temperature: -40℃ to +105℃

Selling point

1. Prompt delivery
2. Variety of packing: Bulk and carton
3. Stable performance, extensive resistance
4. Factory direct price

Note: Product specifications can be customized.Custom inductance values are available.
