High Q Chip Inductor AIML0603C for Wireless Communications and Bluetooth Modules

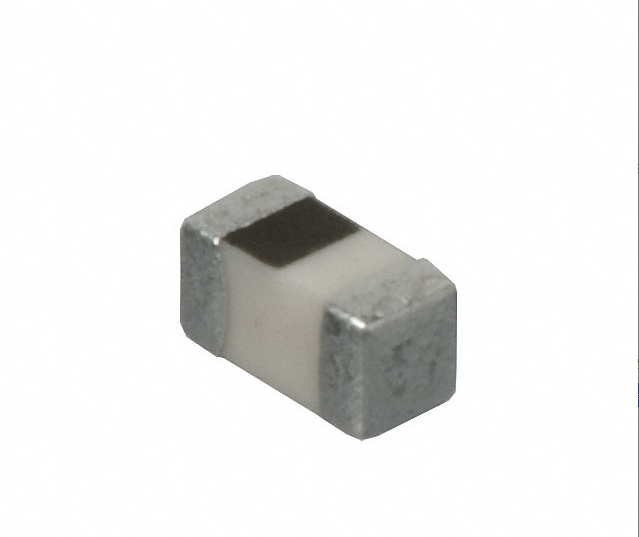

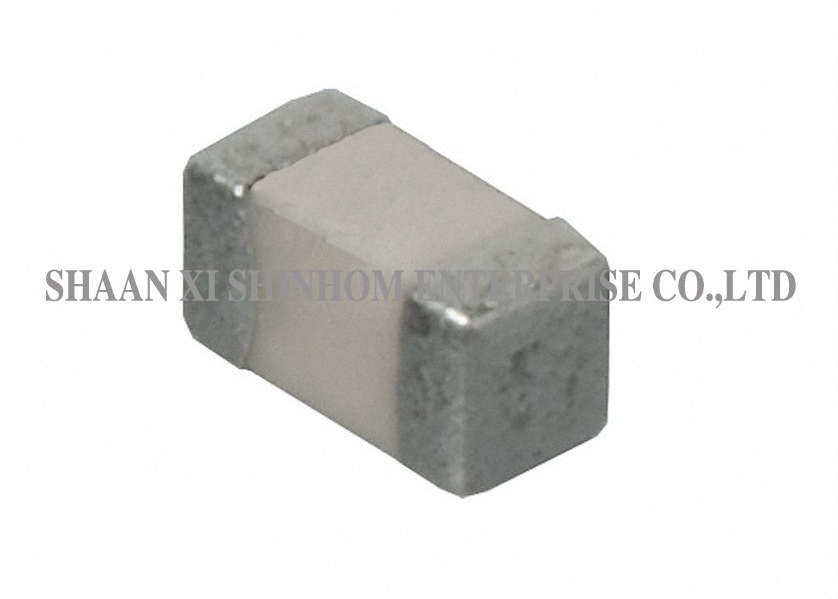

AIML0603C Ceramic chip inductors

The AIML0603C series ceramic chip inductor is manufactured using advanced thin-film technology. Inductance range covers 1.2nH to 100nH. Rated current is 500mA. It offers high self-resonant frequency and low DCR.The 0201 ultra-small size (0.6×0.3mm) with leadless design is suitable for high-density surface-mount applications.The enamel glass coating provides high precision and low resistance drift. It offers excellent solderability, thermal shock resistance, and is compatible with both wave soldering and reflow soldering processes.It is widely used in high-frequency RF circuits, wireless communication, Bluetooth modules, GPS, mobile phones, and various high-frequency filtering and matching networks.

Features:

1. Advanced thin film technology
2. Miniature size 0201 available
3. Small size, no lead is suitable for high-density surface mount
4. Low resistance value of the highB
5. Excellent solderability and heat shock
6. Suitable for wave soldering and reflow soldering
7. Enamel-coated glass and high precision, small resistance drift
8. Environmentally friendly products

Applcations:

1. Medical Equipment
2. Testing/Measurement Equipment
3. Printer Equipment
4. Automatic Equipment Controller
5. Converters
6. Communication Device, Cell phone ,GPS ,PDA
7. Personal Computers
8. Portable Equipment
9. CD-ROM, Hard Disk, Modem, Printers
10. DC - DC converters
11. DSC, DVC, PDA, DVD and HDD

Technical information:

1. Solderability:90% of the terminal Electrode shall be covered Preheat:@ 260℃±5℃ for 160 seconds Solder:H63AA Eutectic Solder Flux:Rosin,Dip for 5 seconds ±1 second
2. Thermal Shock: lnductance shall be Within±5% of imitial value and Q shall be within ±30% of initial value When temperaturs is -40℃ and +85℃ for 30 Min.for each 100 cycles
3. Operating Temperature:-25℃ to +85℃
4. Storage Temperature: -40℃ to +85℃

FAQ

Q: What are the advantages of thin-film technology compared to multi-layer ceramic technology?

A: Thin-film technology uses photolithography processes for manufacturing, offering higher precision, tighter inductance tolerance, and lower parasitic parameters. It provides higher Q factor and higher self-resonant frequency at high frequencies, making it especially suitable for RF and microwave applications. Multi-layer ceramic technology is lower in cost and suitable for general high-frequency applications.

Q: What are the advantages of the 0201 ultra-small size?

A: The 0201 size (0.6×0.3mm) is one of the smallest SMD packages available. It greatly saves PCB space and is suitable for high-density SMT modules and compact portable device designs.

Q: What are the advantages of enamel glass coating?

A: Enamel glass coating provides high precision and low resistance drift, ensuring the inductor maintains stable electrical performance under temperature changes and long-term use, improving product reliability.
