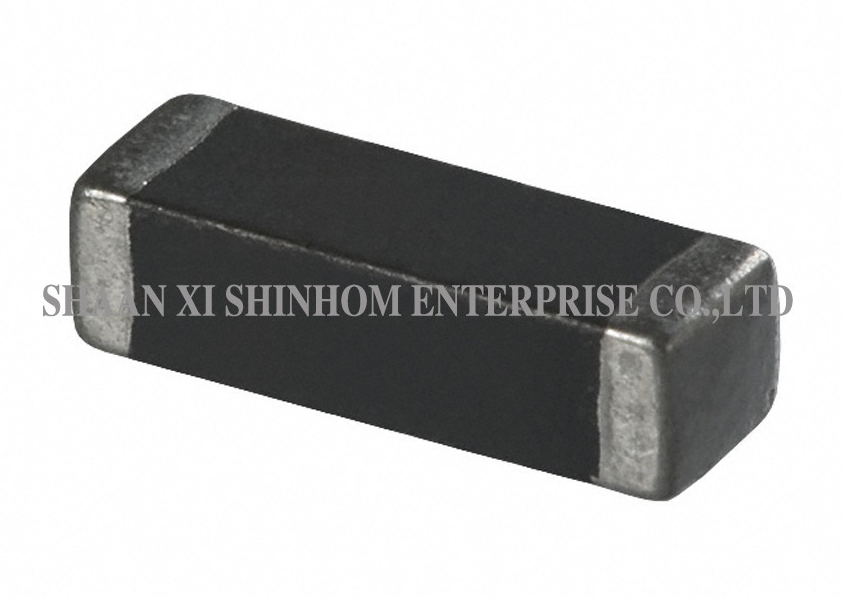

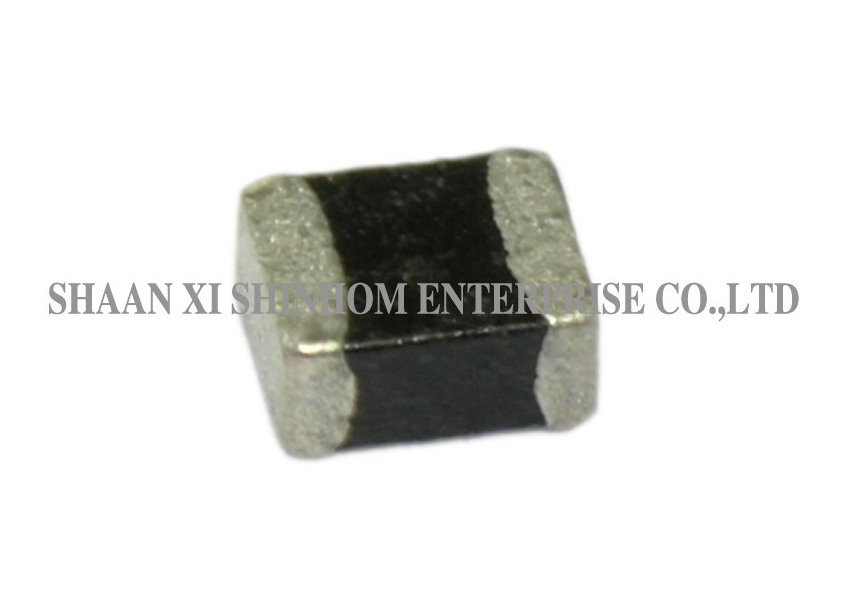

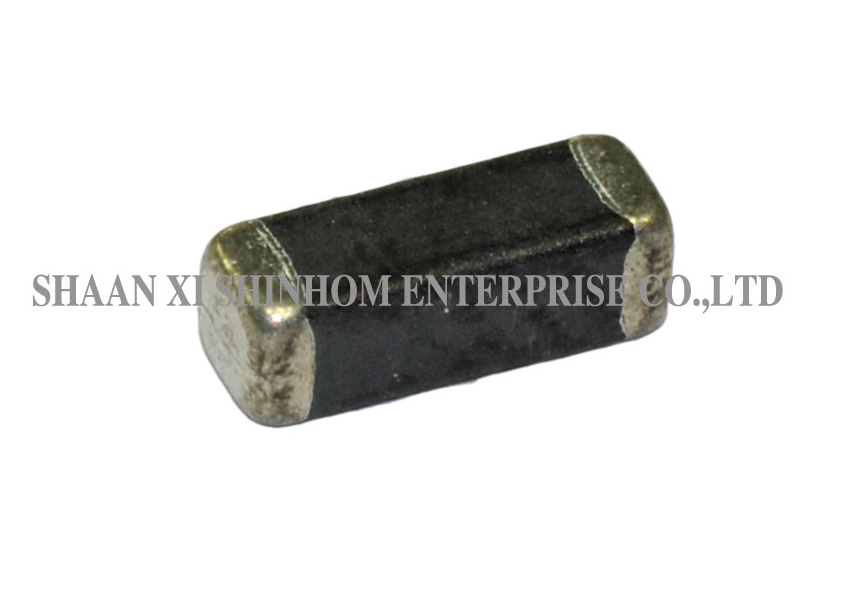

AIML1206 Series Multilayer Chip Inductor Low DCR for Communication Devices

The AIML1206 series multi-layer chip inductor features a closed magnetic circuit design that effectively prevents crosstalk. It offers low DCR, high reliability, and excellent solderability, ensuring signal transmission integrity in high-frequency circuits.The product is suitable for high-density mounting and reflow soldering processes. Multiple standard sizes from 0402 to 1210 are available to meet different PCB layout requirements.It is widely used in personal computers, portable devices, medical equipment, test and measurement instruments, printer equipment, and communication equipment.

Features:

• Closed magnetic circuit
• Excellent solderabilityHigh reliability
• Sizes 0402 / 0603 / 0805 / 1206 / 1210
• Counter measures for complying with FCC,VDE,CSA,VCCI and CE
• Closed magnetic circuit avoids crosstalk
• Suitable for high density installation and re-flow soldering

Applcations:

• Personal Computers
• Portable Equipment
• Medical Equipment
• Testing/Measurement Equipment
• Printer Equipment
• Communication Device, Cell phone ,GPS ,PDA

Technical information:

1. Testing:(Equivalents acceptable) lnductance & Q-HP4195A+HP41951
2. DCR:VOAC-7412
3. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
4. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
5. Operating Temperature:-40℃ to +100℃

Notes: Product size and inductance can be customized

FAQ

Q: What are the advantages of the closed magnetic circuit design?

A: The closed magnetic circuit confines magnetic flux inside the core. It effectively reduces leakage flux and electromagnetic interference to surrounding circuits, while preventing magnetic coupling crosstalk between adjacent components. In high-density PCB layouts, it significantly improves signal integrity and system electromagnetic compatibility.

Q: What international standards does this product comply with?

A: This product complies with international standards including FCC (US) , VDE (Germany) , CSA (Canada) , VCCI (Japan) , and CE (EU) , meeting the electromagnetic compatibility and safety requirements of major global markets.

Q: What package sizes are available for this series?

A: Five standard sizes are available: 0402, 0603, 0805, 1206, and 1210. They can be flexibly selected based on PCB space and inductance requirements.

Q: Is this product suitable for reflow soldering?

A: Yes. This product is suitable for reflow soldering with excellent solderability, making it suitable for automated SMT production lines and high-density mounting.
