High Reliability Chip Inductor AIML1210 Series for Test/Measurement and Storage Equipment

AIML1210 Series chip inductors with high self resonate frequency,Multilayer Chip Inductor Ferrite Bead

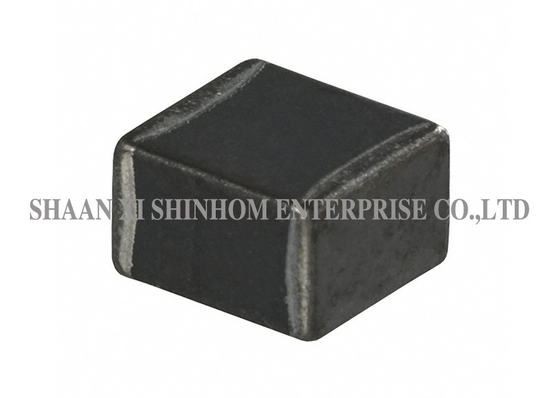

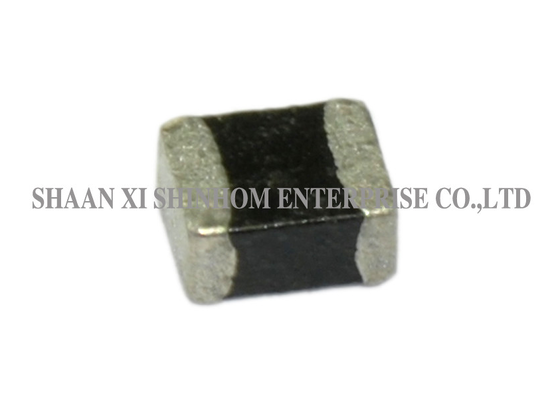

The AIML1210 series multi-layer chip inductor features a closed magnetic circuit design that effectively prevents crosstalk. It offers high self-resonant frequency and high reliability, ensuring signal transmission integrity in high-frequency circuits.The product is suitable for high-density mounting and reflow soldering processes. Multiple standard sizes from 0402 to 1210 are available to meet different PCB layout requirements.It is widely used in medical equipment, test and measurement instruments, portable devices, CD-ROMs, hard disk drives, modems, printers, DSC, DVC, PDAs, DVDs, and HDDs.

Features:

• Closed magnetic circuit
• Avoids crosstalk
• Closed magnetic circuit avoids crosstalk
• Suitable for high density installation and re-flow soldering
• Sizes 0402 / 0603 / 0805 / 1206 / 1210

Applcations:

1. Medical Equipment
2. Testing/Measurement Equipment
3. Portable Equipment
4. CD-ROM, Hard Disk, Modem, Printers
5. DSC, DVC, PDA, DVD and HDD

Technical information:

1. Eectrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
2. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
3. Operating Temperature:-40℃ to +100℃

Notes: Product size and inductance can be customized

FAQ

Q: What are the advantages of the closed magnetic circuit design?

A: The closed magnetic circuit confines magnetic flux inside the core. It effectively reduces leakage flux and electromagnetic interference to surrounding circuits, while preventing magnetic coupling crosstalk between adjacent components. In high-density PCB layouts, it significantly improves signal integrity and system electromagnetic compatibility.

Q: What are the benefits of high self-resonant frequency for circuit design?

A: High self-resonant frequency allows the inductor to maintain inductive characteristics at higher frequencies, avoiding performance degradation caused by capacitive regions. It is especially suitable for high-frequency resonant circuits, filters, and RF applications, ensuring stable inductance performance at high frequencies.

Q: What package sizes are available for this series?

A: Five standard sizes are available: 0402, 0603, 0805, 1206, and 1210. They can be flexibly selected based on PCB space and inductance requirements.

Q: Is this product suitable for reflow soldering?

A: Yes. This product is suitable for reflow soldering with excellent solderability, making it suitable for automated SMT production lines and high-density mounting.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model (including size and inductance value). Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
