High Reliability Chip Inductor AIML0402 Series for Medical and Test Equipment

Negotiation
MOQ
Negotiation
Price
High Reliability Chip Inductor AIML0402 Series for Medical and Test Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Installation: SMT
Size: 1.0*0.5*0.5mm
Application: DSC, DVC, PDA, DVD And HDD
Inductance: 47nH To 18uH
Type: Chip Inductor
Current Range: 5mA-25mA
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AIML0402 Series
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The AIML0402 series multi-layer chip inductor features a closed magnetic circuit design that effectively prevents crosstalk. It offers high self-resonant frequency and low DCR, ensuring signal transmission integrity in high-frequency circuits. The product offers excellent solderability and high reliability, suitable for high-density mounting and reflow soldering processes. It is widely used in medical equipment, test and measurement instruments, printers, automation controllers, converters, communication equipment, mobile phones, GPS, PDAs, personal computers, portable devices, and various storage and multimedia devices.

Features:

  • Closed magnetic circuit
  • Avoids crosstalk
  • Excellent solderability
  • High reliability
  • Counter measures for complying
  • with FCC,VDE,CSA,VCCI and CE
  • Closed magnetic circuit avoids crosstalk
  • Suitable for high density installation and re-flow soldering
  • Sizes 0402 / 0603 / 0805 / 1206 / 1210

Applications:

  1. Medical Equipment
  2. Testing/Measurement Equipment
  3. Printer Equipment
  4. Automatic Equipment Controller
  5. Converters
  6. Communication Device, Cell phone ,GPS ,PDA
  7. Personal Computers
  8. Portable Equipment
  9. CD-ROM, Hard Disk, Modem, Printers

Technical information:

Parameter Details
Testing (Equivalents acceptable) Inductance & Q-HP4195A+HP41951
DCR VOAC-7412
SRF HP8753C
Solderability 75% of the terminal electrode shall be covered
Preheat @ 180℃±5℃ for 2-3 minutes
Solder temperature 230℃ for 4 seconds ±1 second
Flux Emersion into methanol solution with Colophony for 3 to 5 seconds.
IDC The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
Operating Temperature -40℃ to +100℃

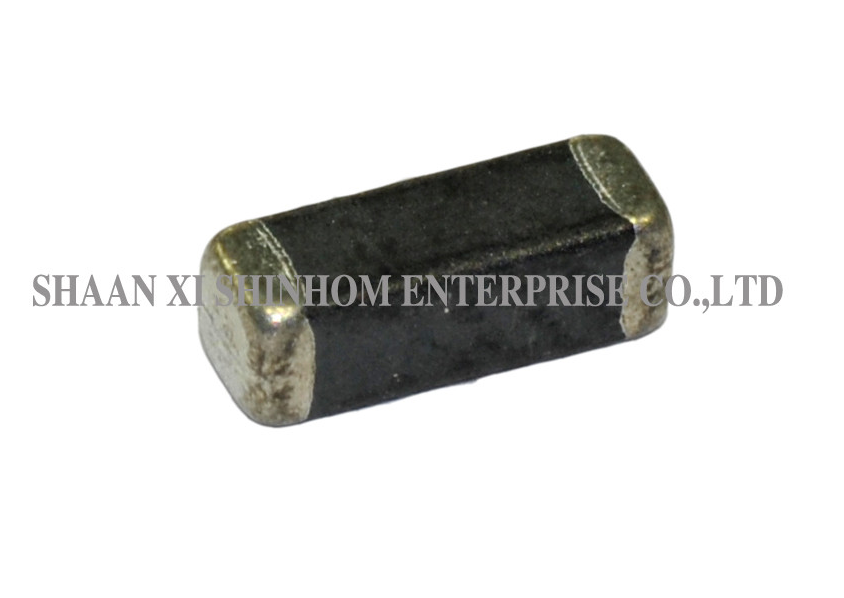

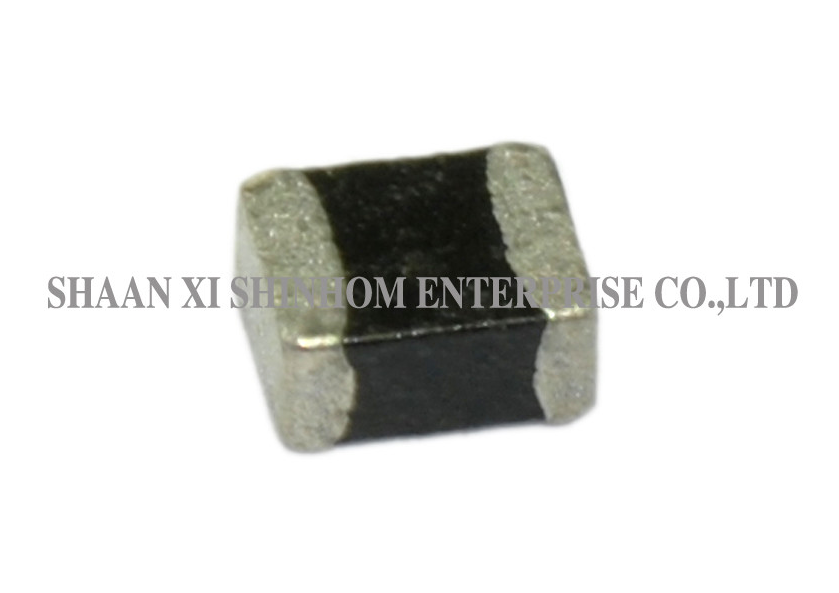

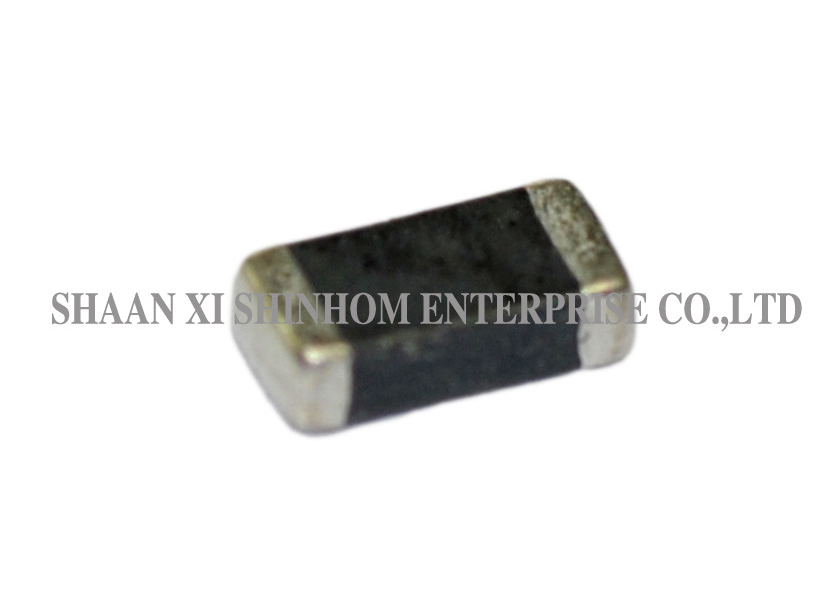

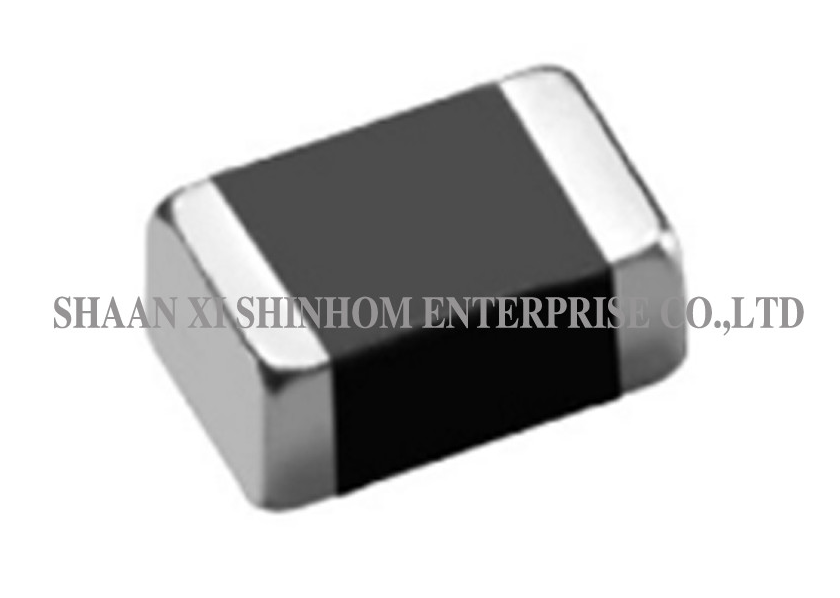

High Reliability Chip Inductor AIML0402 Series for Medical and Test Equipment

Notes: Product size and inductance can be customized

FAQ

Q: What are the advantages of the closed magnetic circuit design?

A: The closed magnetic circuit confines magnetic flux inside the core. It effectively reduces leakage flux and electromagnetic interference to surrounding circuits, while preventing magnetic coupling crosstalk between adjacent components. In high-density PCB layouts, it significantly improves signal integrity and system electromagnetic compatibility.

Q: What package sizes are available for this series?

A: Five standard sizes are available: 0402, 0603, 0805, 1206, and 1210. They can be flexibly selected based on PCB space and inductance requirements, covering applications from ultra-small to general-purpose.

Q: Is this product suitable for reflow soldering?

A: Yes. This product is suitable for reflow soldering with excellent solderability, making it suitable for automated SMT production lines and high-density mounting.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model (including size and inductance value). Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
