AIML0603 Series Multilayer Chip Inductor Low DCR for Communication Devices and Portable Electronics

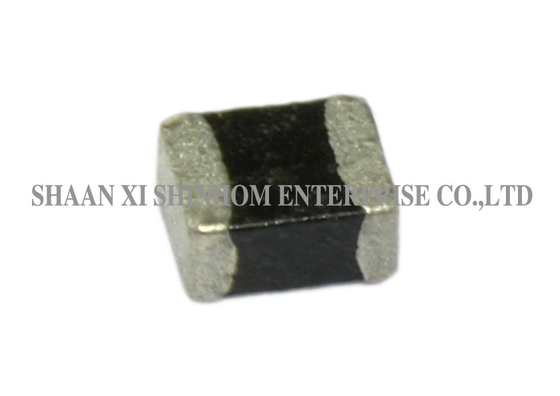

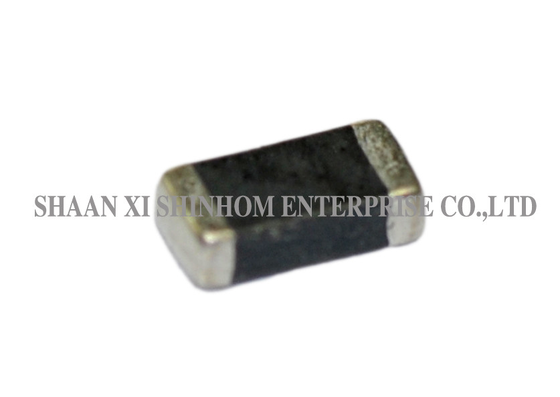

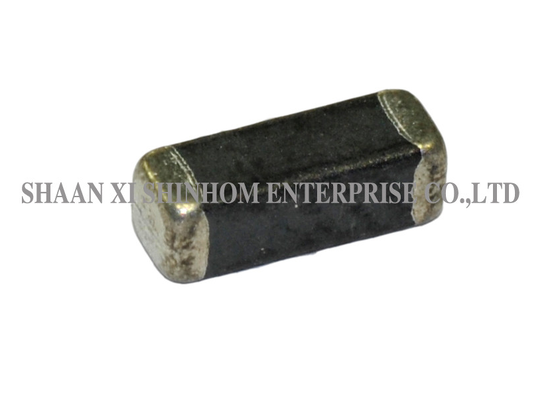

AIML0603 Series Chip Inductors

The AIML0603 series multi-layer chip inductor features a closed magnetic circuit design that effectively prevents crosstalk. It offers low DCR and high reliability, ensuring signal transmission integrity in high-frequency circuits. The product offers excellent solderability and is suitable for high-density mounting and reflow soldering processes. Multiple standard sizes from 0402 to 1210 are available to meet different PCB layout requirements. It is widely used in personal computers, portable devices, storage devices, medical equipment, test and measurement instruments, printers, automation controllers, converters, and communication equipment.

Features

• High reliability
• Sizes 0402 / 0603 / 0805 / 1206 / 1210
• Closed magnetic circuit
• Avoids crosstalk
• Excellent solderability
• Counter measures for complying with FCC,VDE,CSA,VCCI and CE
• Closed magnetic circuit avoids crosstalk
• Suitable for high density installation and re-flow soldering

Applications

1. Personal Computers
2. Portable Equipment
3. CD-ROM, Hard Disk, Modem, Printers
4. DSC, DVC, PDA, DVD and HDD
5. Medical Equipment
6. Testing/Measurement Equipment
7. Printer Equipment
8. Automatic Equipment Controller
9. Converters
10. Communication Device, Cell phone ,GPS ,PDA

Technical Information

1. Testing:(Equivalents acceptable) lnductance & Q-HP4195A+HP41951
2. DCR:VOAC-7412
3. SRF:HP8753C
4. Solderability:75% of the terminal
5. electrode shall be covered Preheat:@ 180℃±5℃ for 2-3 minutes Solder temperature:230℃for 4 seconds ±1 second Flux:Emersion into methanol solution with Colophony for 3 to 5 seconds.
6. IDC:The DC current at which tither the initial L value is decreased by 5% with the application of DC bias or the value of current at which the temperature of the element is increased by 20℃
7. Operating Temperature:-40℃ to +100℃

Notes: Product size and inductance can be customized
