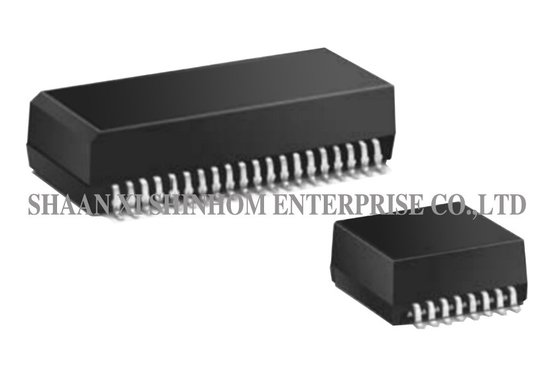

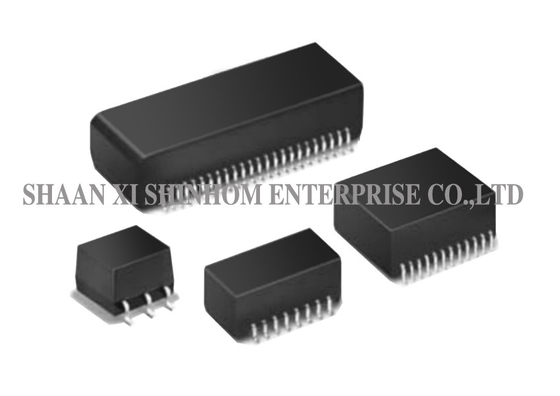

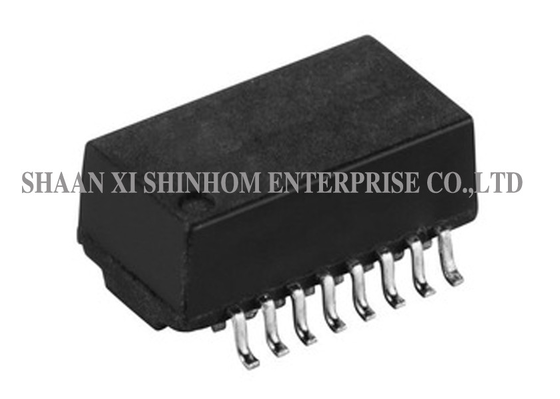

HS1201SR 10/100Base-TX Transformer for Ethernet Interfaces and PoE Power Delivery

The HS1201SR 10/100Base-TX network transformer module is designed for Ethernet interface applications, complying with the IEEE802.3 standard to ensure compatibility and reliability in network communication.The product uses a high-performance core and precision winding processes, providing excellent signal transmission performance and common-mode rejection capability, supporting 10/100Base-TX network communication.Both SMD and THT package options are available, suitable for reflow and wave soldering processes.It is widely used in switches, routers, network interface cards, and various Ethernet communication equipment. It is an ideal choice for network interface isolation and signal transmission.

FEATURES:

• Designed to meet IEEE 802.3 at requirements.
• RoHS compliant
• Operating temperature range:0℃ to +70℃
• Storage temperature range: -40℃ to +80℃
• Isolation voltage: 1500Vrms Min
• SMT & Thru Hole available
• Soldering methods:Wave,Reflow

Applications

• 10/100Base-TX Ethernet switches

• Network routers

• Network Interface Cards (NIC)

• PoE power supply devices

• Network cameras

• Wireless Access Points (AP)

• Industrial Ethernet equipment

• Embedded network modules

Multiple specifications are available

FAQ

Q: What does open-circuit inductance of 350µH Min mean?

A: Open-circuit inductance (OCL) is an important parameter for Ethernet transformers. The 350µH minimum ensures signal transmission integrity and common-mode rejection capability under typical operating conditions, meeting the performance requirements of 10/100Base-TX networks.

Q: How to choose between SMD and THT packages?

A: SMD (surface mount) is suitable for automated SMT production lines, ideal for high-volume production. THT (through-hole) is suitable for wave soldering, allowing easy manual soldering and prototyping. Please choose based on your production process.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
