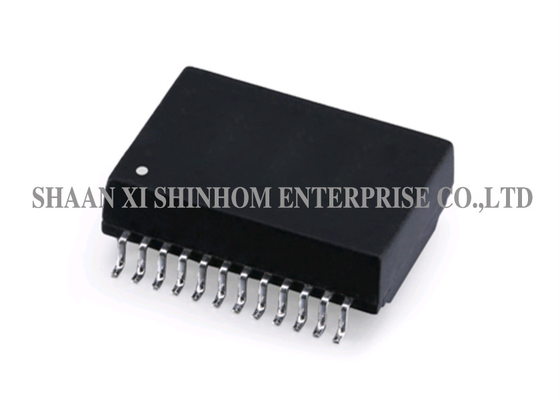

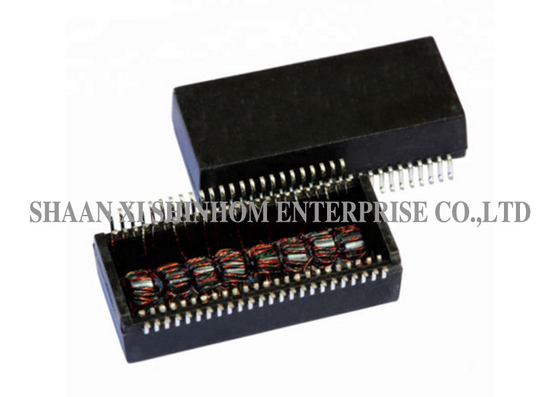

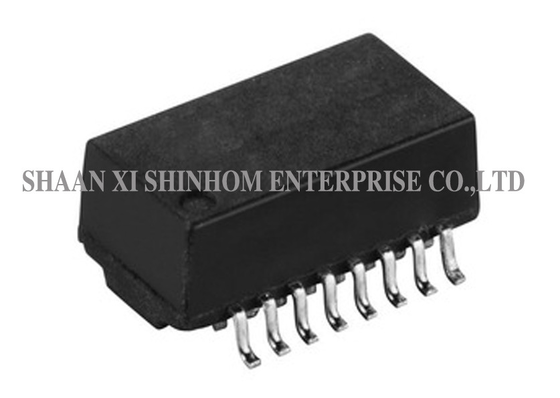

Ferrite Core SMD LAN Transformer HS16002S for Switches and Routers

The HS16002S SMT network transformer is designed for 10/100/1000Base-T Ethernet interface applications. It uses a ferrite core and precision winding processes to ensure signal transmission integrity and reliability.The product offers insertion loss ≤-1.1dB, return loss ≥-20dB, with excellent common-mode rejection and crosstalk performance.Isolation voltage: 1500Vrms, ensuring safe isolation for network interfaces.The SMD package is suitable for reflow soldering processes.It is widely used in switches, routers, network interface cards, and various network communication equipment.

FEATURES

• Designed to meet IEEE 802.3 at requirements.
• RoHS compliant
• Operating temperature range:0℃ to +70℃
• Storage temperature range: -40℃ to +80℃
• Isolation voltage: 1500Vrms Min
• SMT & Thru Hole available
• Soldering methods:Wave,Reflow

Applications

• 10/100/1000Base-T Ethernet switches

• Network routers

• Network Interface Cards (NIC)

• PoE power supply devices

• Network cameras

• Wireless Access Points (AP)

• Industrial Ethernet equipment

• Embedded network modules

Electrical specification

Multiple specifications are available

FAQ

Q: What are the advantages of the ferrite core?

A: The ferrite core offers high permeability and low high-frequency loss, providing excellent signal transmission performance and common-mode rejection capability in Ethernet transformers.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
