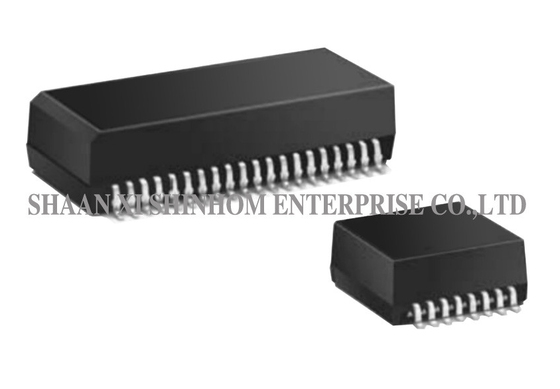

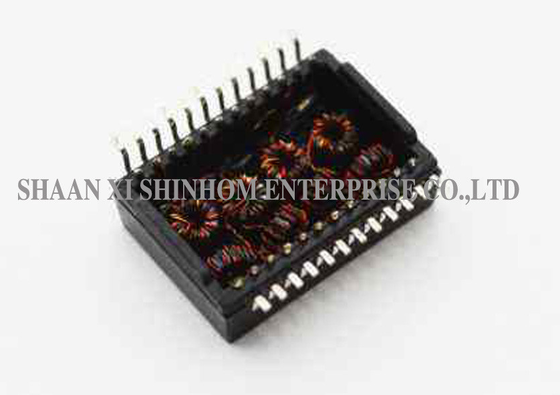

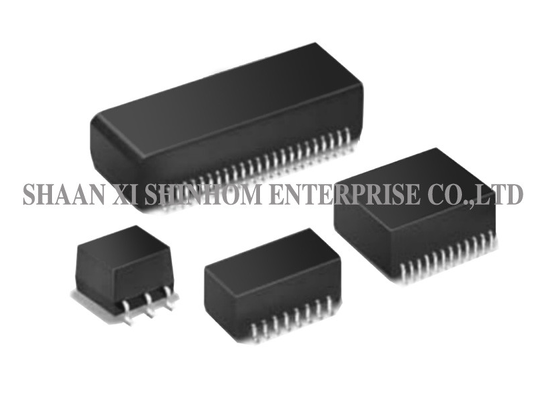

HS24001S 1000Base-T Gigabit Transformer Module 24PIN SMD for Switches and Routers

The HS24001S 1000Base-T Gigabit network transformer module is designed for Gigabit Ethernet interface applications, complying with the IEEE802.3 standard to ensure compatibility and reliability in network communication.The product uses a high-performance core and precision winding processes, providing excellent signal transmission performance and common-mode rejection capability. It offers high isolation voltage, ensuring safe isolation for network interfaces.The 24-pin SMD package is suitable for reflow soldering processes.It is widely used in Gigabit switches, routers, network interface cards, and industrial network equipment. It is an ideal choice for signal transmission and isolation in Gigabit Ethernet interfaces.

FEATURES:

• Designed to meet IEEE 802.3 at requirements.
• RoHS compliant
• Operating temperature range:0℃ to +70℃
• Storage temperature range: -40℃ to +80℃
• Isolation voltage: 1500Vrms Min
• SMT & Thru Hole available
• Soldering methods:Wave,Reflow

Applications

• Gigabit Ethernet switches

• Network routers

• Network Interface Cards (NIC)

• PoE+ power supply devices

• Industrial Ethernet equipment

• Network cameras

• Wireless Access Points (AP)

• Embedded network modules

Electrical specification:

Multiple specifications are available

FAQ

Q: What are the advantages of the 24-pin SMD package?

A: The 24-pin SMD package offers higher integration, is suitable for automated SMT production lines, and is ideal for high-volume production and high-density PCB designs.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
