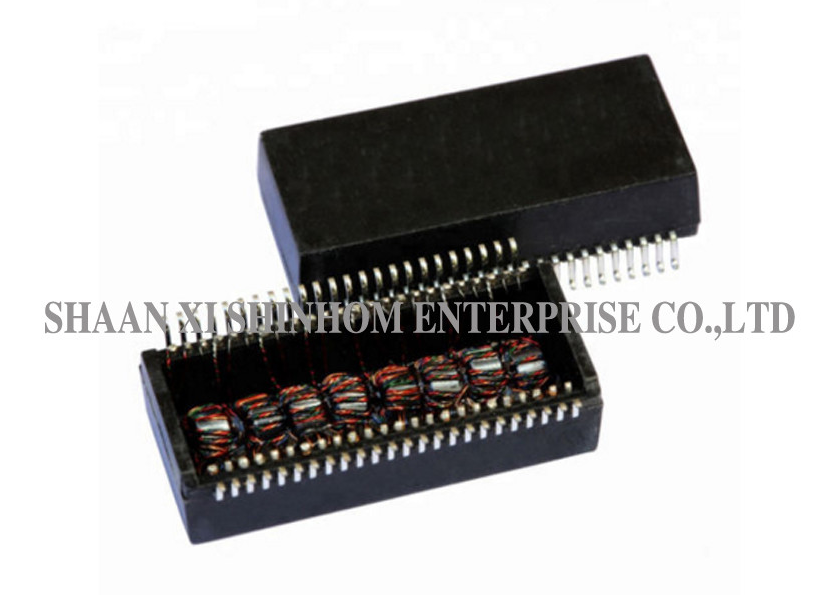

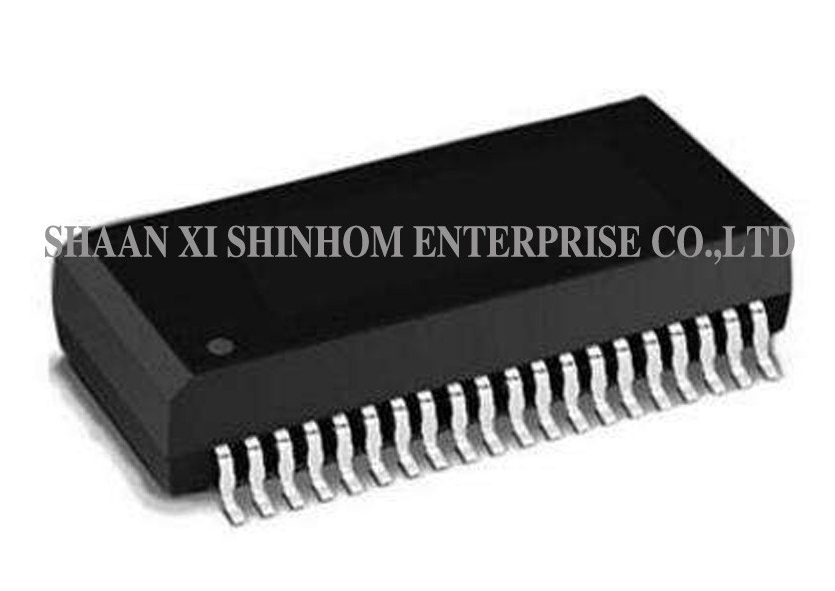

48PIN Gigabit Ethernet Transformer HS4807 for Industrial Networking

The HS4807 1000Base-TX Gigabit network transformer module is designed for Gigabit Ethernet interface applications, complying with the IEEE802.3 standard and supporting 1000 Base-TX network communication. The product features a high-integration 48-pin SMD package, offering excellent return loss, crosstalk, and common-mode rejection performance. Isolation voltage: 1500Vrms, ensuring safe isolation for network interfaces. Wide operating temperature range: -40 to +85°C, meeting industrial-grade application requirements. It is widely used in Gigabit switches, routers, industrial network equipment, PoE+ power supply devices, and various network communication equipment.

FEATURES:

• RoHS compliant
• Designed to meet IEEE 802.3 at requirements.
• Operating temperature range:40℃ to +85℃
• Storage temperature range: -40℃ to +80℃
• Isolation voltage: 1500Vrms Min

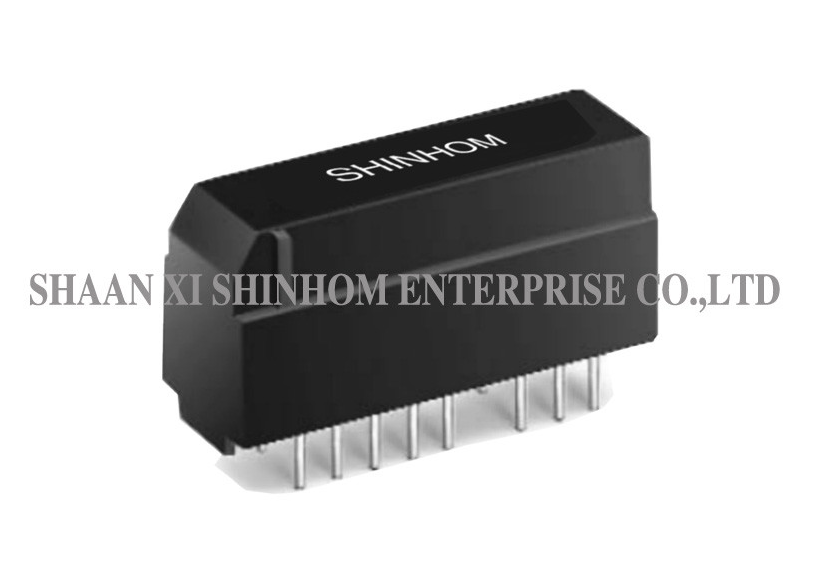

• SMT & Thru Hole available

Applications

• Gigabit Ethernet switches
• Network routers
• Industrial network equipment
• PoE+ power supply devices
• Network Interface Cards (NIC)
• Network cameras
• Wireless Access Points (AP)
• Embedded network modules

Electrical specification:

Multiple specifications are available

FAQ

Q: What are the advantages of the 48-pin high-integration design?

A: The 48-pin high-integration design integrates transformer and filtering circuits for multiple network interfaces into a single module, saving PCB space, simplifying layout, reducing assembly costs, and making it suitable for multi-port network equipment.

Q: What is the insertion loss performance of this product?

A: Insertion loss is ≤-1.0dB. Low insertion loss ensures signal transmission efficiency, reduces power loss, and improves Gigabit network communication quality.

Q: How to apply for samples? What is the lead time?

A: You can submit a sample application through our website or email. Please provide your company information and target model. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks.
