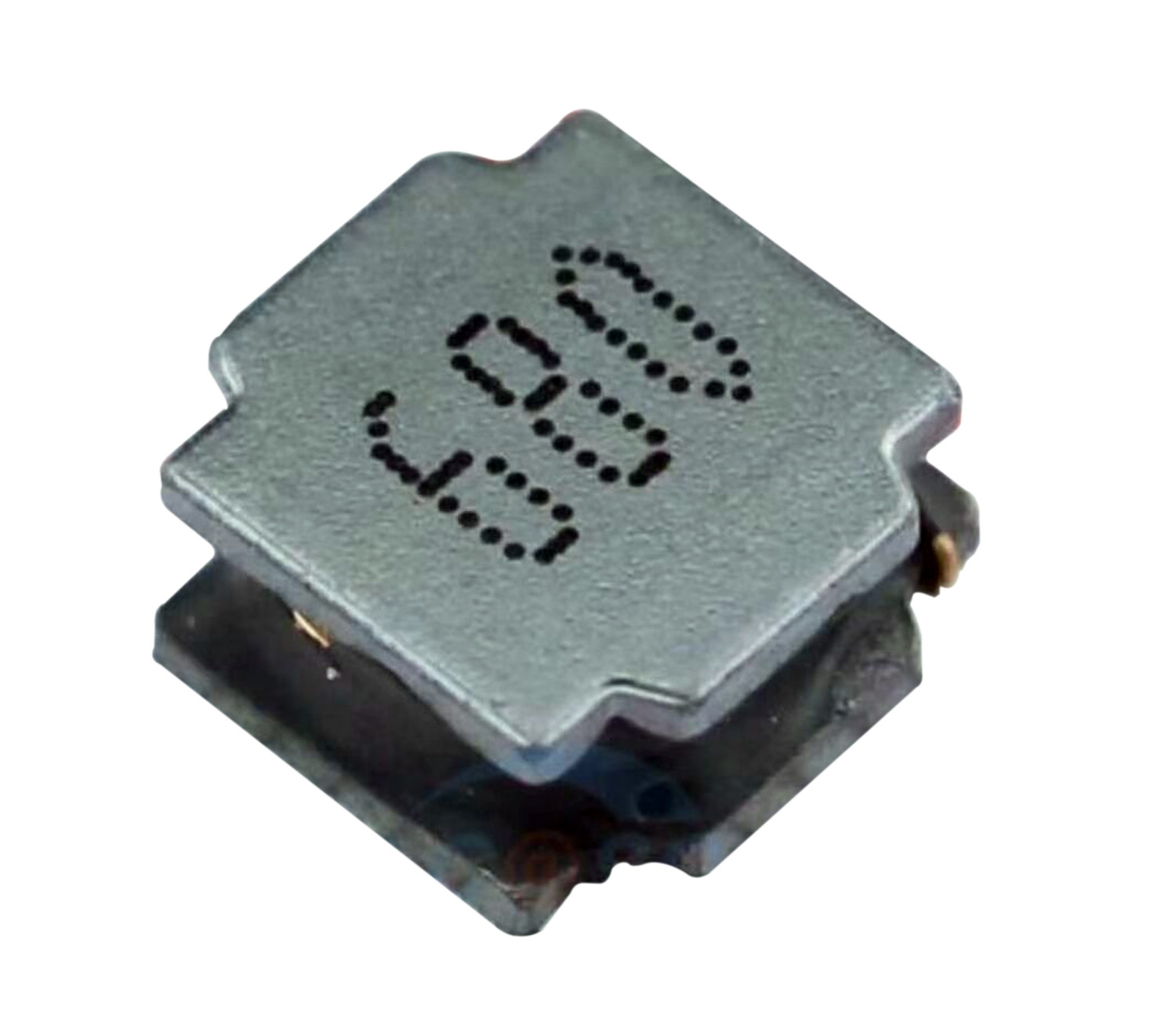

Magnetic Epoxy SMT High Current SMD Shielded Inductors

SMD Shielded Inductor , Magnetic Epoxy SMT Low Profile Semi Sealed High Current Inductor

Features:

1. Low profile with maximum height of 2mm
2. Low DCR SMD Large-current
3. SMD magnetically shield
4. Shielded SMD power chip inductor
5. Magnetic shielded surface mount inductor with high-current rating
6. Low profile and shielded very effective in space-conscious applications
7. Low resistance to deep power loss minimumOperating temperature: -20 to 85℃ (contain heating coil)
8. Appearance inspection: no external defect by visual inspection
9. Terminal strength: after soldering, between copper plate and terminals of coil, push in two directions of X, Y with standing as below conditions
10. Terminal should not peeled offHeat endurance of reflow soldering: 240℃
11. Insulating resistance: over 100MΩ at 100V DC between wire and core
12. Dielectric strength: no dielectric breakdown at 100V DC for one minute between wire and core
13. Humidity characteristic: in 90 to 95% relative humidity at 40 ±2 and one hour drying under normal conditionInductance deviation within ±5.0% after vibration for one hour

Size:

2512

3010,3012,3015

4010,4012,4018,4020,4030

5020,5040

6012,6020,6028,6045

8030,8040

Inductance: 0.47uH to 330uH

Current range: 0.38A to 13.8A

Note: Product specifications can be customized.Custom inductance values are available.
