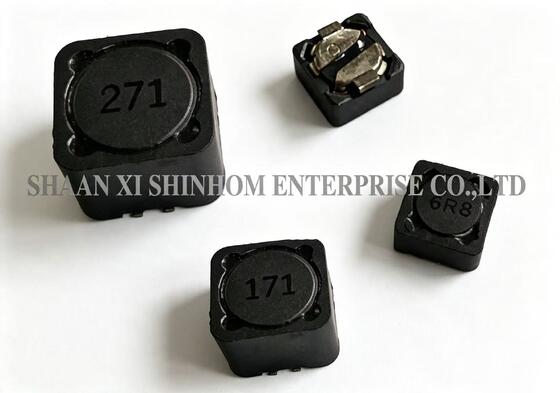

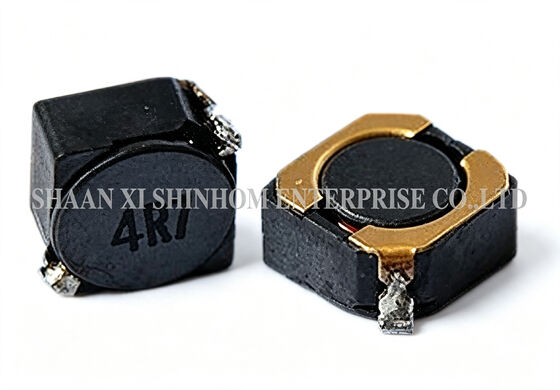

High Current Shielded SMD Inductor SDRH5D18/5D28 Series Low DCR for Notebooks and LCD TVs

The SDRH5D18/5D28 series magnetic shielded SMD power inductor uses a magnetic shield structure and square flat package design. It effectively reduces EMI and is suitable for high-density PCB layouts and space-constrained applications. Inductance range covers 1μH to 100μH. High current capacity is up to 3.86A. Low DCR ensures high conversion efficiency. The product offers excellent mechanical strength, high reliability, and excellent solderability, ensuring long-term reliable operation under various working conditions. It is widely used in video recorders, laptops, DC-DC converters, video digital cameras, communication systems, automotive power systems, LCD/PDP TVs, hard disk drives, network systems, and computer peripherals.

• Magnetically Shielded Structure
• Low DC Resistance
• Large current up to 3.86A
• Excellent Mechanical Strength
• High Reliability and Excellent Solderability
• Low and square Profile
• High heat resistance

• VCRs, Notebook, DC/DC Converters
• Video Digital Cameras
• Communication System
• Automotive Systems Power supplier
• LCD PDP Televisions
• Hard Disk Drives, Topset, XDSL
• Network Systems
• Computer Peripheral Equipmen

• Inductor Testing: HP4284A (Equivalent acceptable)
• DCR:QuadTech 1880 Milliohmmeter
• Q- HP4342A - SRF-HP4191A
• IDCMax current is decreased 10% against its initial value
• Operating temperature: -40℃ to +105℃
• Storage Temperature: -40℃ to +105℃
• Solder methods: Vapor Phase,Infrared Reflow
• Resistance to soldering heat:260℃ for 10 seconds
• Solvent resistance: Conforms to MIL-STD-202E

Note: Product specifications can be customized.
