High Current SMD Shielded Inductor SDRH6D28/6D38 Series Low Resistance for Automotive Systems and LCD TVs

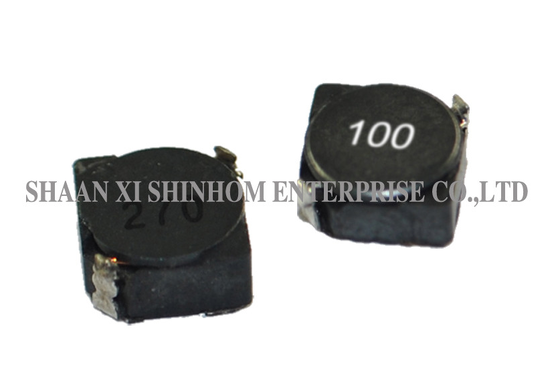

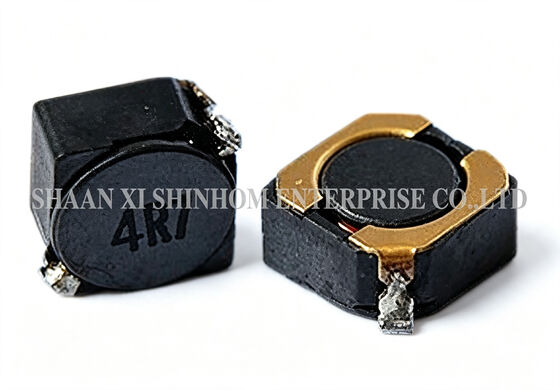

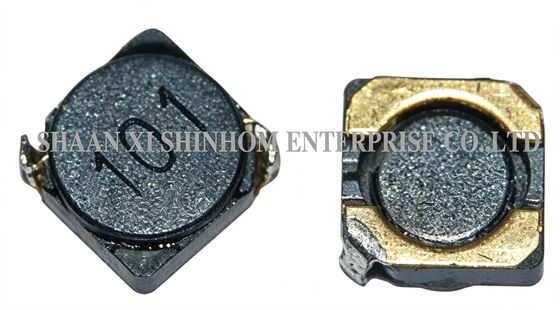

The SDRH6D28/6D38 series magnetic shielded SMD power choke uses a magnetic shield structure and square flat package design. It effectively reduces EMI and is suitable for high-density PCB layouts and space-constrained applications. The product offers excellent mechanical strength and thermal stability, capable of withstanding reflow soldering temperature changes and external mechanical stress. The miniature size, high energy storage, and low resistance characteristics make it an ideal inductor choice for PDA and DC-DC switching power supplies, suitable for high-current operation (up to 3.2A). It is widely used in video digital cameras, communication systems, automotive power systems, LCD/PDP TVs, hard disk drives, network systems, and computer peripherals.

• Magnetic shield structure – low EMI
• Rated current – up to 3.2A
• Low DCR
• Excellent mechanical strength and thermal stability
• Miniature size
• High energy storage
• Square flat package
• Operating temperature – -40°C to +105°C

1. Video Digital Cameras
2. Communication System
3. Automotive Systems Power supplier
4. LCD PDP Televisions
5. Hard Disk Drives, Topset, XDSL
6. Network Systems
7. Computer Peripheral Equipmen

1. Inductor Testing: HP4284A (Equivalent acceptable)
2. DCR:QuadTech 1880 Milliohmmeter
3. IDCMax current is decreased 10% against its initial value
4. Operating temperature: -40℃ to +105℃
5. Storage Temperature: -40℃ to +105℃
6. Solder methods: Vapor Phase,Infrared Reflow
7. Resistance to soldering heat:260℃ for 10 seconds

Note: Product specifications can be customized.Custom inductance values are available.
