High-Performance EMI Filters and Feedthrough Capacitors for EMC Noise Suppression with Ceramic Dielectric Materials

5000
MOQ
High-Performance EMI Filters and Feedthrough Capacitors for EMC Noise Suppression with Ceramic Dielectric Materials
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

High-Performance EMI Filter

,

EMC Noise Suppression Feedthrough Capacitor

,

Ceramic Dielectric Materials EMI Filter
Basic Infomation
Place of Origin: China
Brand Name: SHINHOM
Certification: RoHS
Model Number: Feedthrough Capacitor Filters
Document: Feedthrough Capacitor Filte...s_.pdf
Payment & Shipping Terms
Delivery Time: 2~8weeks
Payment Terms: L/C,T/T
Product Description

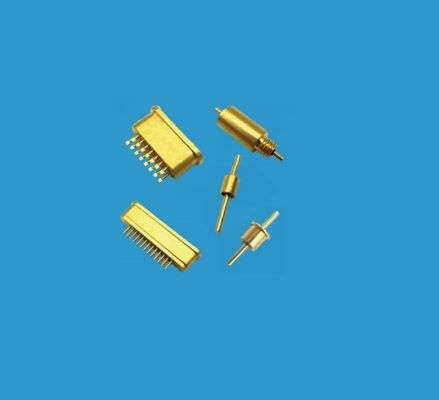

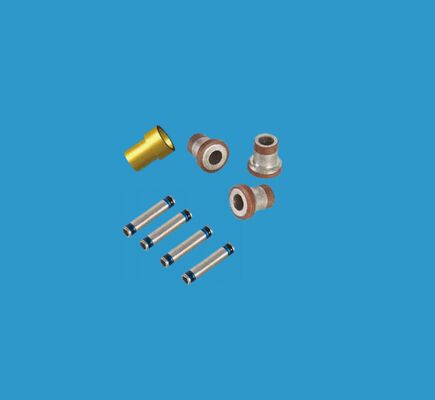

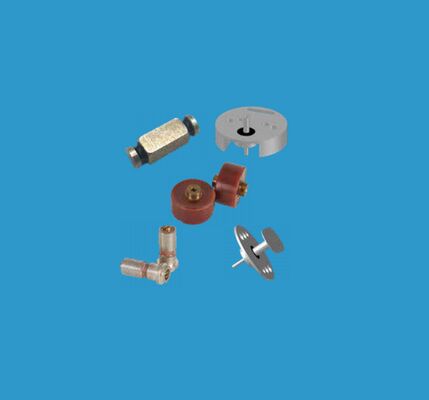

Integrated High-Performance EMI Filters & Feedthrough Capacitors for EMC Noise Suppression
Our high-reliability EMI Filters and Feedthrough Capacitors are engineered to provide superior electromagnetic interference suppression for demanding applications across industrial electronics, power systems, communication equipment, medical devices, and military-grade systems.
Designed with high-quality ceramic dielectric materials (NPO, X7R, Y5V, Y5U, etc.), these filters deliver outstanding stability, low insertion loss, and consistent performance across a wide frequency spectrum—from kHz to GHz.
Key Features
  • Comprehensive EMI Suppression: Wide filtering range from 10 kHz to 10 GHz, supporting both low-frequency and high-frequency interference attenuation.
  • Multiple Dielectric Options: Available in NPO/COG, X7R, Y5V, Y5U, ensuring stable capacitance in different temperature and voltage conditions.
  • Wide Product Portfolio: Includes Solder-in Filters, Bolt-in Filters, Metallic-Shell Filters, Tubular Capacitors, and customized solutions.
  • High Voltage & Current Ratings: Rated voltage options up to 500 VDC and current up to 35A, suitable for heavy-duty applications.
  • Low Insertion Loss Design: Maintains efficient signal path integrity while delivering strong EMI suppression.
  • Durable Construction: Options include tin-plated, nickel-plated, gold-plated, and silver-plated terminals for corrosion resistance and solderability.
  • Versatile Installation: Supports solder-in, bolt-in, panel-mount, and threaded assembly, fitting both PCB and enclosure integration.
  • Ideal for High-Reliability Systems: Rugged housing withstands vibration, temperature cycling, and harsh environments.
Typical Specifications (Model-Dependent)
Capacitance Range 5 pF - 68000 pF
Rated Voltage 50 VDC - 500 VDC
Current Rating 5A / 7A / 10A / 20A / 35A
Dielectric Type NPO, X7R, Y5V, Y5U
Plating Options Tin, Silver, Gold, Nickel
Insertion Loss 10 kHz: 0-6 dB
100 kHz: 5-22 dB
1 MHz: 10-35 dB
10 MHz: 20-63 dB
100 MHz: 30-70 dB
1 GHz: 40-80+ dB
Mounting Types Solder-in / Bolt-in / Threaded / Panel-mount / Tubular
Applications
Power Conversion Systems DC power lines, switching supplies, SMPS, UPS systems.
Industrial Automation Motor drives, PLCs, energy meters, industrial control cabinets.
Telecommunication Equipment RF circuits, base stations, signal conditioning modules.
Medical & Laboratory Instruments Sensitive measurement devices needing high EMI immunity.
Consumer Electronics Audio systems, charging modules, digital interface protection.
Military & Aerospace Equipment Harsh-environment EMI suppression requiring high reliability.
